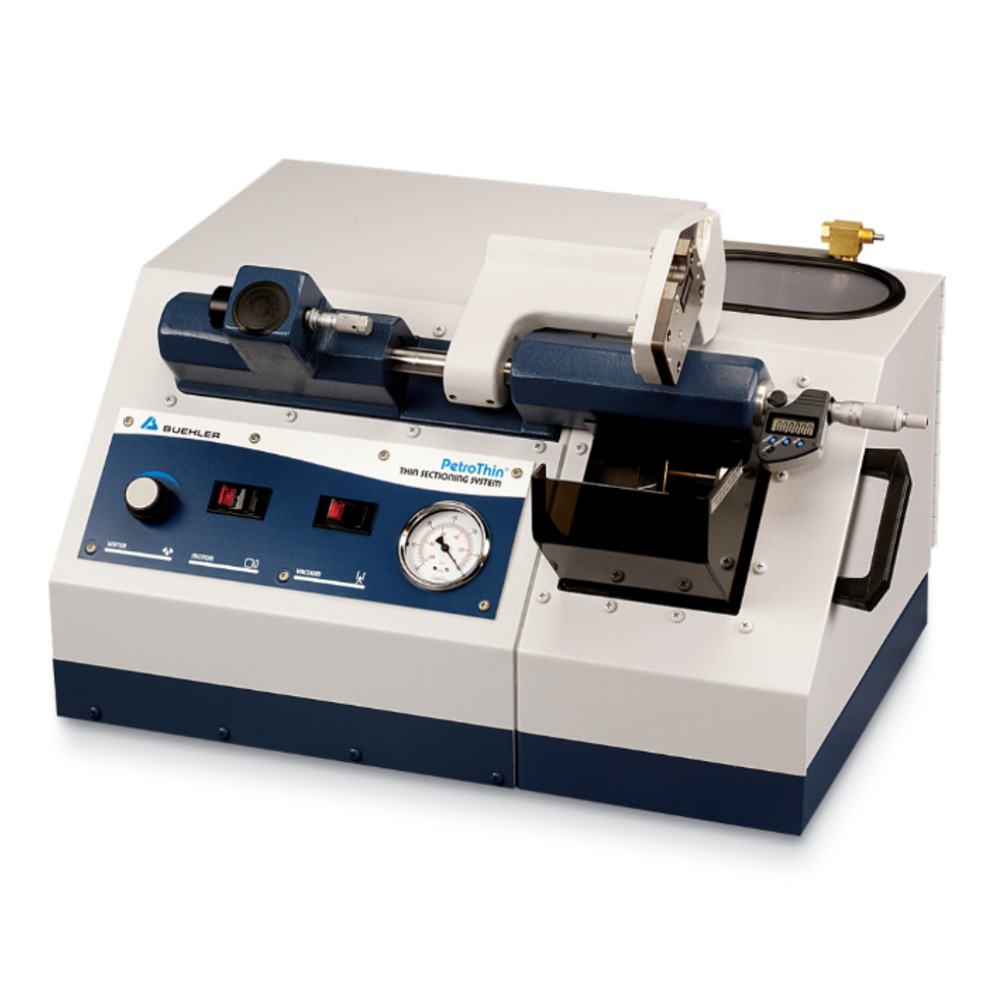

Thin Sectioning Machine



The PetroThin Thin Sectioning System is a precise easy-to-use precision thin section cutting machine for re-sectioning and thinning a wide variety of samples, such as rocks and minerals, ceramics, concrete, bone, and teeth for performing materials characterization.

Single spindle design ensures parallelism of sample edges by eliminating the need to remove the glass slide from the machine between steps.





Description



Petrothin



The PetroThin Thin Sectioning System is a precise easy-to-use precision thin section cutting machine for re-sectioning and thinning a wide variety of samples, such as rocks and minerals, ceramics, concrete, bone, and teeth for performing materials characterization.

Single spindle design ensures parallelism of sample edges by eliminating the need to remove the glass slide from the machine between steps



Specifications:



Voltage/Frequency: 115VAC @ 60Hz, 220VAC @ 50Hz, 1 phase

Motor Power: 1/3 Hp [250W]

Wheel Diameter: 8in [203mm]

Precision Grinding: ± 5µm

Wheel Speed: 34-1450-160: 220rpm; 38-1450-250: 2100rpm
