Description
Abrasive Cutters

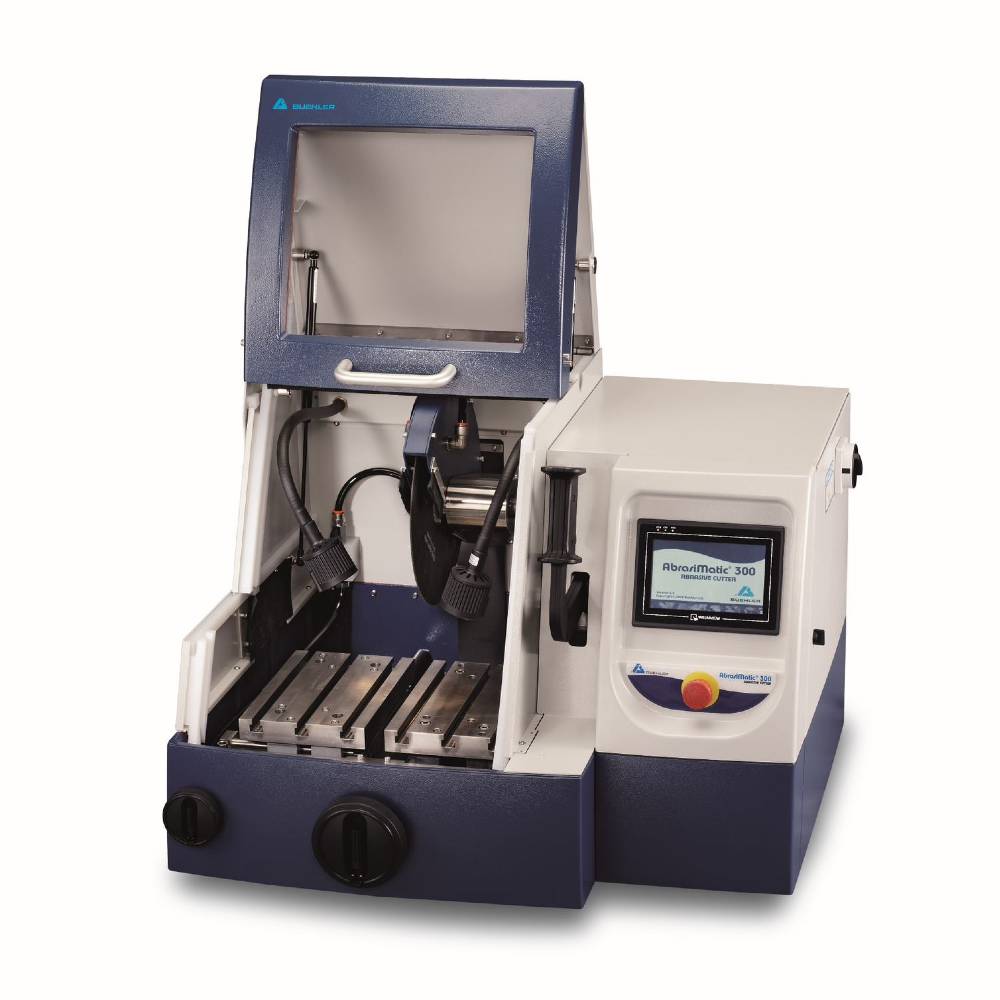

Abrasimatic 300
The AbrasiMatic 300 is a benchtop cutting machine for 12in [305mm] blades that provide both manual and automatic cutting capabilities. These capabilities provide versatility in sectioning to suit a wide variety of needs.

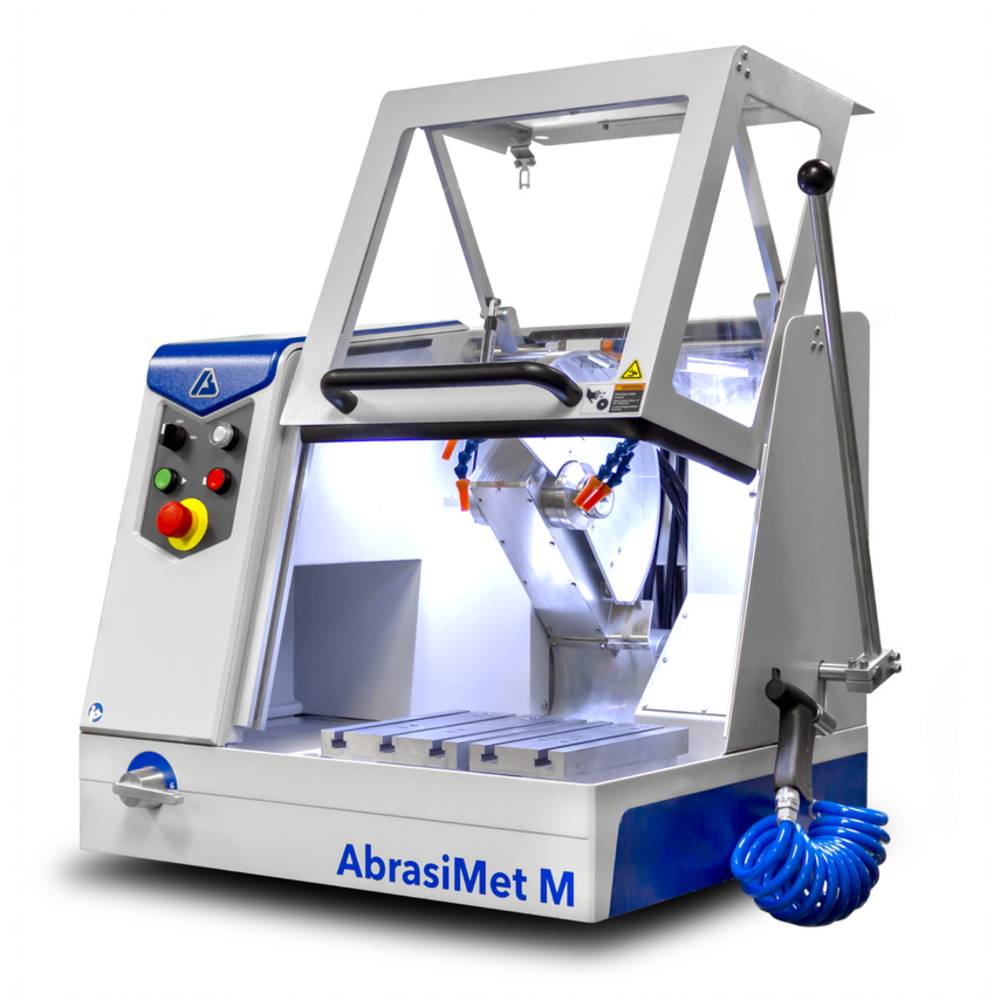

Abrasimet M
The AbrasiMet M is a benchtop manual cutting machine for 10in [254mm] and 12in [305mm] blades that provide consistent sectioning results. A powerful motor and ergonomic cutting arm provide a smooth and efficient cutting motion. The AbrasiMet M is a durable machine that provides users with a quick, clean and simple solution for their cutting needs.

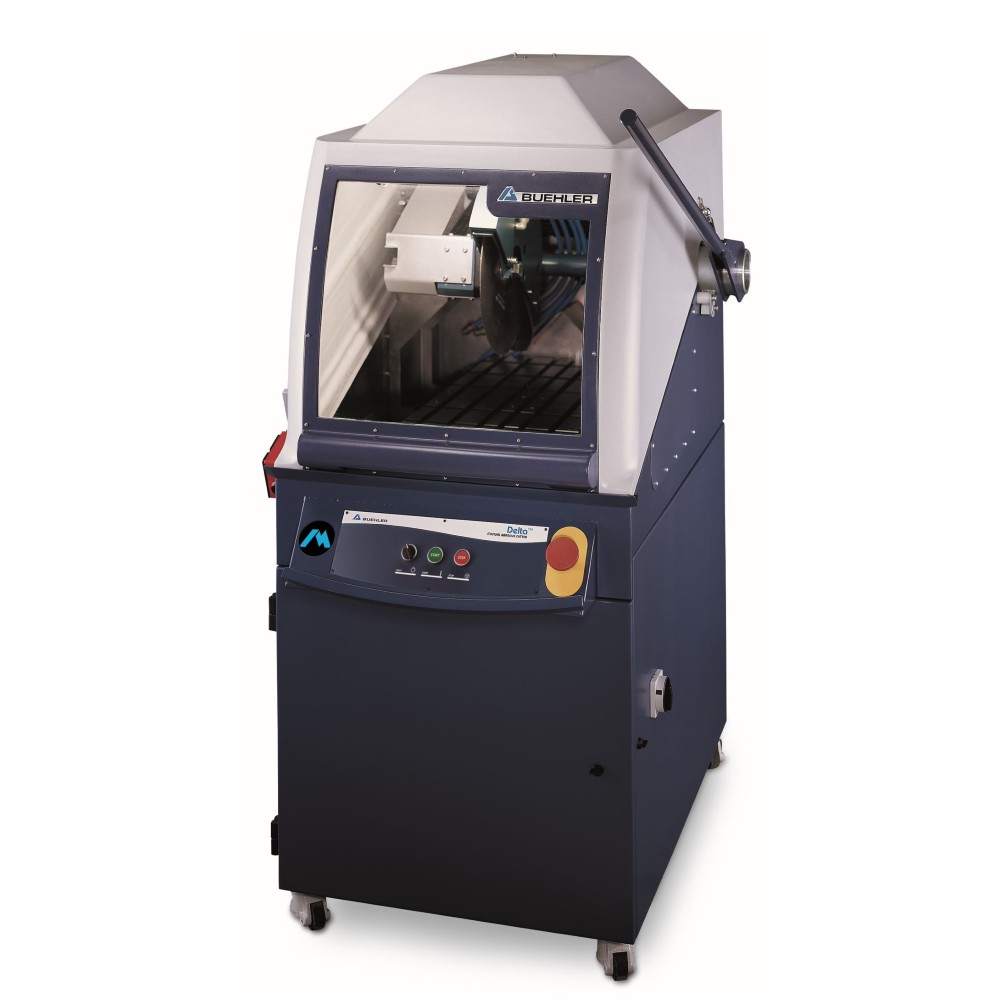

Delta Manual Cutter
The Delta Manual is a floor standing manual abrasive cutter for 14in [350mm] blades. This cutter’s high powered motor, large chamber, and versatile vising options enable simple, quick, and easy positioning of samples for sectioning.

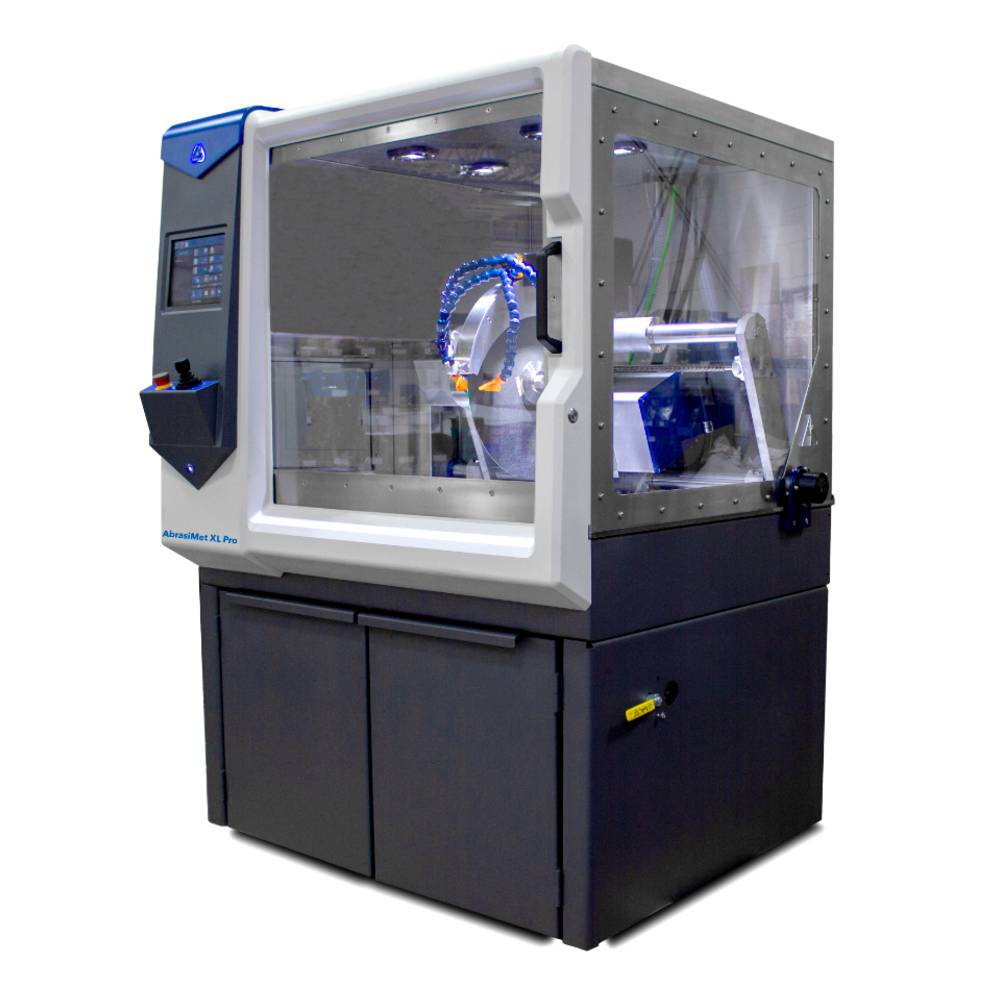

Abrasimet XL Pro
The AbrasiMet™ XL Pro is a floor standing automatic abrasive cutting machine for 14in [356mm] to 18in [457mm] blades that provides consistent and repeatable cut quality for larger diameter samples. The machine’s large chamber and powerful motor allow for fast sectioning of large workpieces with ease.
| AbrasiMet™ M | AbrasiMatic™ 300 | Delta Manual | AbrasiMet™ XL Pro | |
| Wheel Diameter | 10in [254mm]
12in [305mm] |
12in [305mm] | 14in [350mm] | 14in [356mm]
16in [406mm] 18in [457mm] |
| Cut Types | Chop | Chop Y-Feed with Pulsing | Chop | Chop, Y-feed, Planar Pulsing |
| Manual Movement | Z-axis | X-axis*, Y-axis, Z-axis | Z-axis | Y-axis, Z-axis |
| Automated Movement | Y-axis | X-axis, Y-axis, Z-axis | ||
| Maxium Part Size in Chamber | 25 x 13 x 4.3in
[636 x 330 x 109mm] |
16 x 6 x 3.75in
[406 x 152 x 95mm] |
26 x 24 x 5in
[660 x 610 x 127mm] |
49 x 24 x 7in
[1245 x 610 x 178mm] |
| Cutting Capacity | 4.3in** [109mm] | 3.75in [95mm] | 5.00in** [127mm] | 7in [178mm] |
*Optional Items
**Maximum cutting capacity assumes the largest size blade with the smallest flange.
