Stereo Microscope

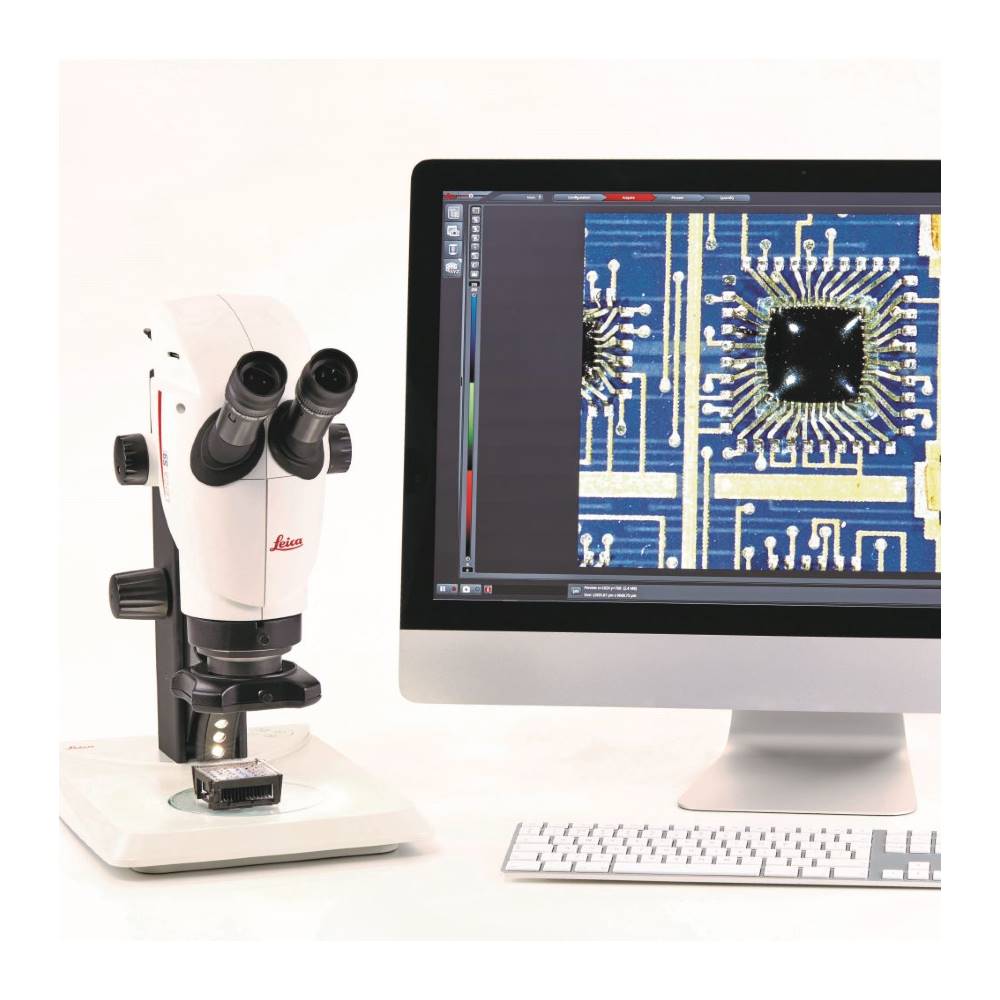

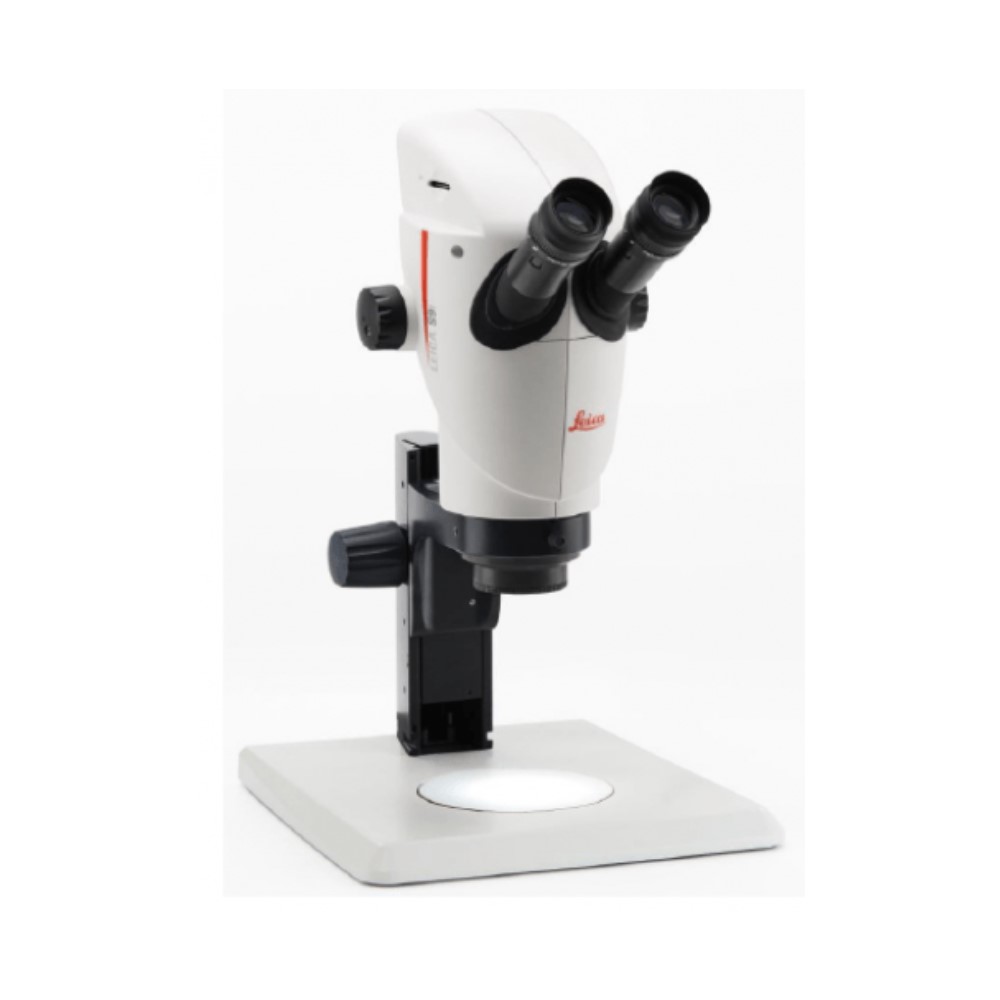

Leica S9i Stereo Microscope



Leica has developed the S9 stereo microscope series to help you cope with these challenges.

The microscopes feature outstanding optical quality and FusionOptics technology for a three times greater depth of field. With a larger area in sharp focus, operators can immediately identify defects with fewer time-consuming microscope adjustments.



Category:

Description



Leica S9i Stereo Microscope



Leica has developed the S9 stereo microscope series to help you cope with these challenges.

The microscopes feature outstanding optical quality and FusionOptics technology for a three times greater depth of field. With a larger area in sharp focus, operators can immediately identify defects with fewer time-consuming microscope adjustments.



Specifications:



  • Magnification: 6.1x – 55 x
  • Zoom Range: 9:1
  • Field of View: 37.6mm
  • Depth of Field: 12mm (at low mag.)
  • Resolution: 250 lp/mm
  • Optics: apochromatic
  • Clickstops at: 10x; 20x; 30x; 40x; 50x
  • Fusionoptics: see details 12 mm top-down fully in focus with high resolution





Leica M125 C Stereo Microscope



Don’t accept compromises: With a coded zoom and apochromatic optics, the Leica M125 C offers high-end quality for mid-range budgets. Combining optimal resolution and depth of field with the integrated double iris diaphragm. Typical applications are medical device manufacturing, semiconductor inspection, materials science



Specifications:



  • Zoom Range: 12.5:1
  • Magnification: 8x to 100x
  • Resolution: up to 864 lp/mm resolution (with 2.0x objective)

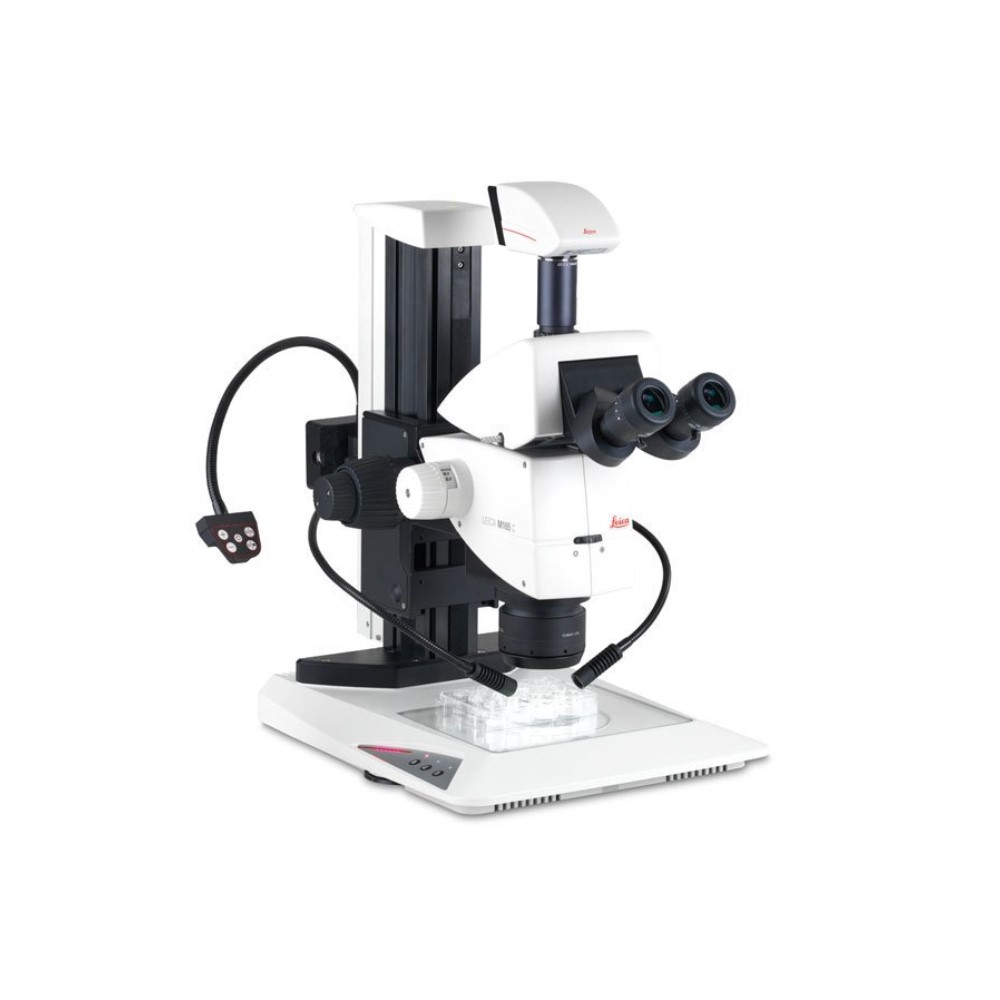

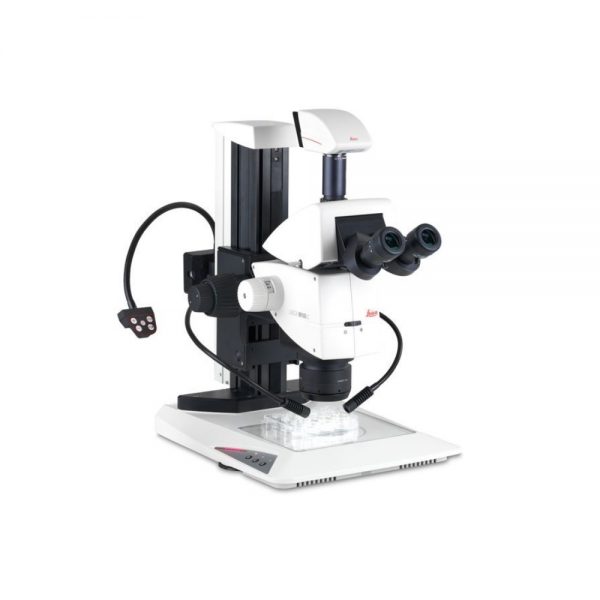

Leica M165 C Stereo Microscope



Do you have to perform a wide variety of tasks but don’t want to constantly change the objective or even switch the microscope? Offering a large zoom and magnification range the Leica M165 C allows you manage all different kind of samples. Typical applications are micro-technology, microelectronics inspection, fiber optics.



Specifications:



  • Zoom Range: 16.5:1
  • Magnification: 7.3x to 120x
  • Resolution: up to 906 lp/mm resolution (with 2.0x objective)

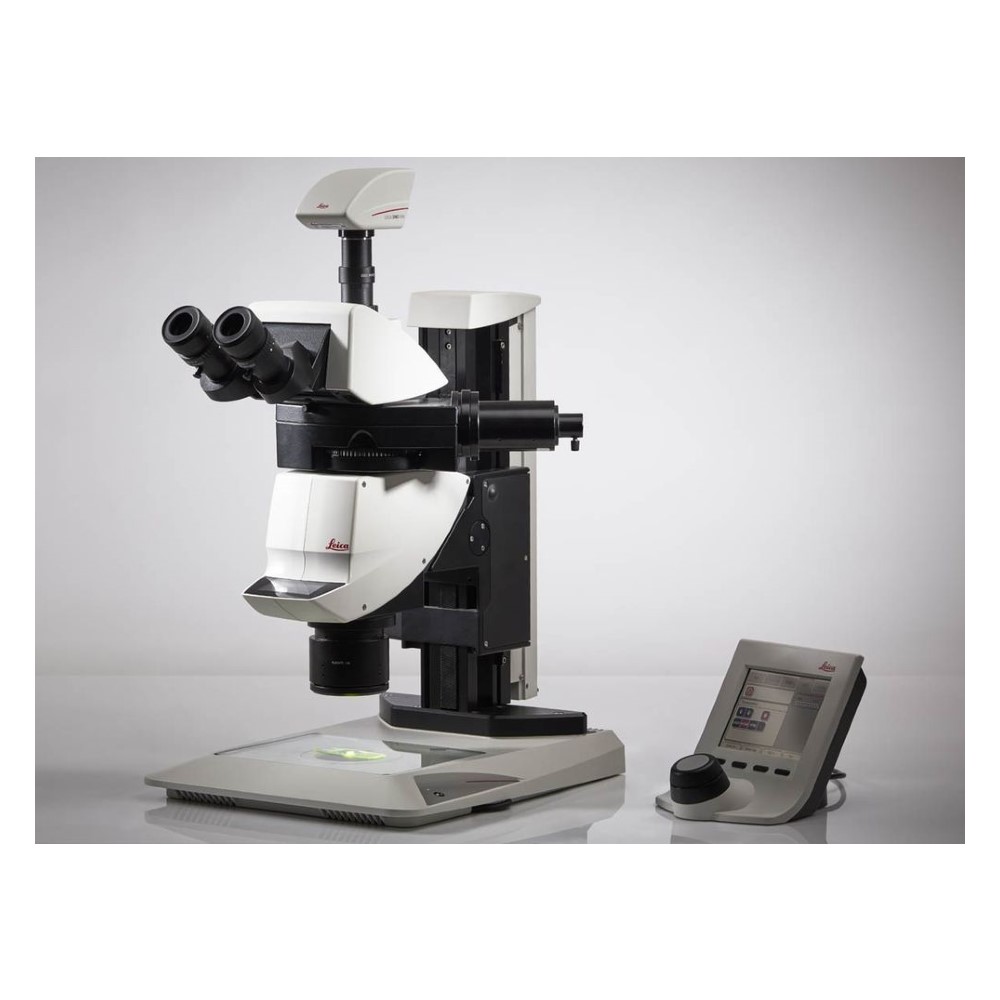

Leica M205 C Stereo Microscope



Imagine not having to choose between high resolution or better depth of field, but to have both! The revolutionary FusionOptics technology makes it possible and provides you an ideal 3D image to see even the smallest details.

The Leica M205 C is the world’s first stereo microscope to achieve an optical resolution of 0.952 µm.



Specifications:



  • 20.5:1 zoom
  • 7.8 x to 160 x magnification
  • up to 1050 lp/mm resolution (with 2.0x objective)



Leica M205 A Stereo Microscope



Do you have to perform repetitive tasks at the microscope that demand the highest precision and accuracy? Then you will love the fully automated Leica M205 A.

Its intelligent automation makes you run your processes with a few mouse clicks. You save time and gain confidence in your results.

You can operate all of the functions of this high-performance stereo microscope via the user-friendly SmartTouch control unit or by the Leica software allowing you to work nearly hands-free.

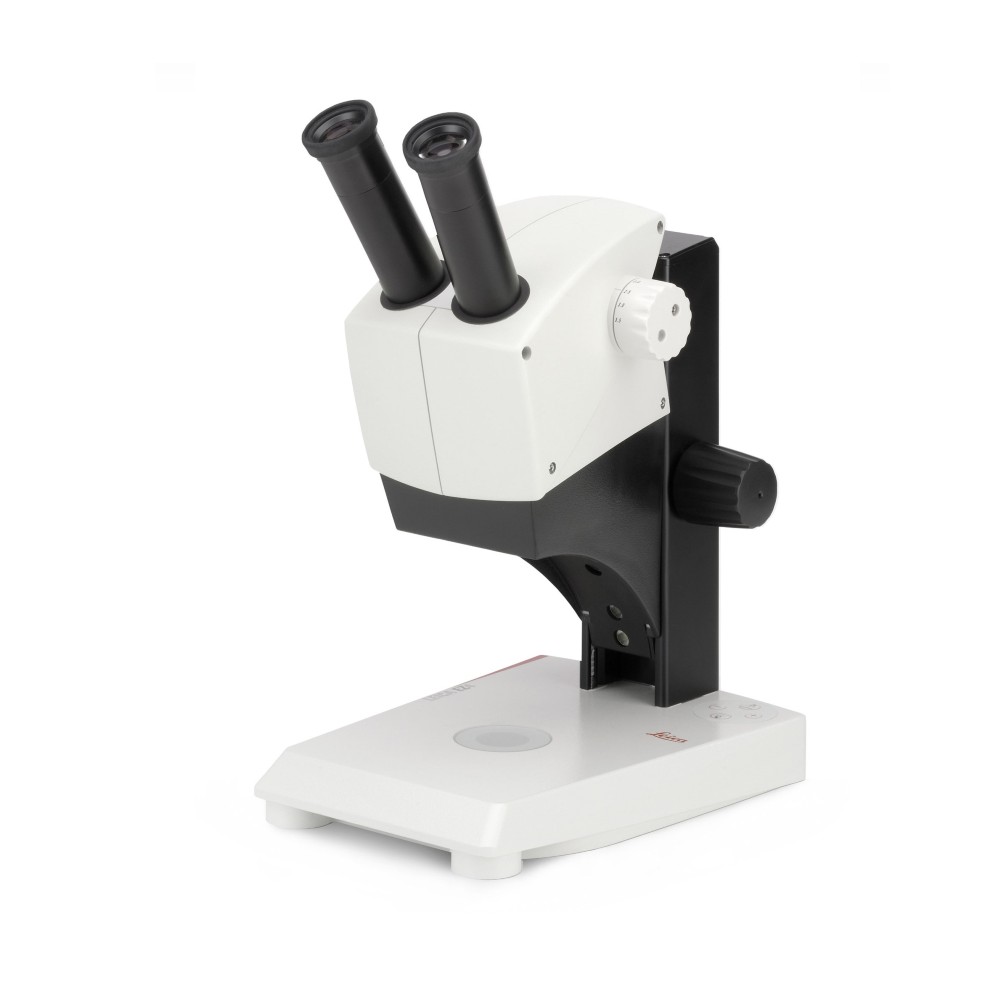

Leica EZ4 Stereo Microscope



The Leica EZ4 educational stereomicroscope with 4.4:1 zoom for entry level university and college courses such as biology, anatomy and chemistry provides over 20 years of bright LED illumination which saves time and cost of replacement bulbs.

7-way LED illumination system provides incident, oblique and transmitted light for high quality illumination and contrast of any application.  Greenough optical system provides a 3 dimensional view of sample.



Specifications:



  • Magnification Range: 8× to 35×
  • Working Distance: 100mm
  • Magnification Changer: zoom 4.4:1
