Description

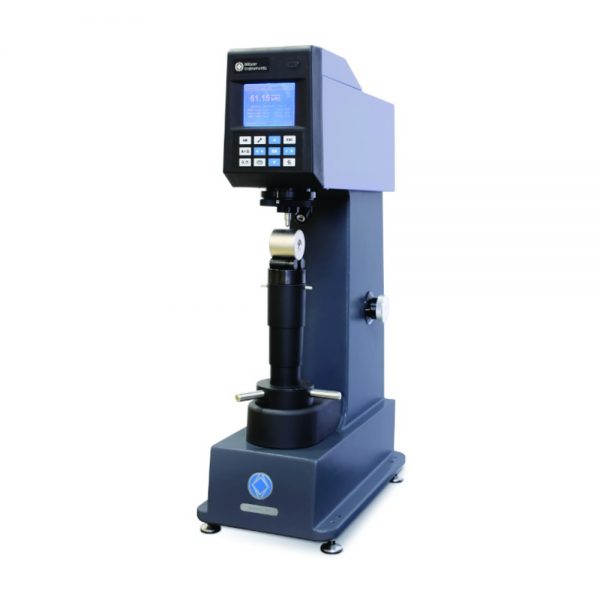

Wilson Rockwell 574
The 574 Series Wilson Rockwell Hardness Testers offer quality, durability, and an industry-leading Gauge Repeatability and Reproducibility (GR&R) making this hardness testing machine best in class. This system is available in Regular or Twin Scale models and capable of testing in all of the regular and superficial Rockwell hardness scales and can accommodate a wide variety of applications.
The 574 Rockwell hardness tester provides a rugged industrial design, an easy-to-use control panel, and a built-in USB for easy data transfer to Microsoft® Excel® or other applications. Designed with the best repeatability in its class, the Wilson 574 is an affordable, high-precision depth measurement Rockwell hardness tester with proven performance.
Specifications:
- Hardness Capabilities: Regular & Twin
- Hardness Scales: A, B, C, D, E, F, G, H, K, L, M, P, R, S, V
- Preliminary Load: 10kg [98.07N]
- Test Loads: 60, 100, 150 kg [588.4, 980.7, 1471 N]
- Dwell Time: Major Dwell Time: 1.0 – 50.0 seconds
- Vertical Testing Capacity: 11.43in [289mm] accessories may decrease available capacity
- Test Cycle: Motorized (Manual preload, auto trip, auto brake)
- Standards Compliance: ASTM E18, ASTM D785, ASTM B294, ISO 6508, JIS Z2245, GB/T 230
- Conversion: ASTM E140, ISO 18265, DIN 50150, GB T1172 Convert up to 4 scales simultaneously
- Throat Depth: 6.93in [176 mm] at the top, 6.13 in [155mm] at the bottom
- Maximum Specimen Weight: 220 lbs [100kg]
- Maximum Specimen Height: 165 lbs [75kg]
- Applications: Steels, Coppers, Cast Irons, Thin Materials, Shallow and Deep Case Hardened Materials
Wilson Rockwell 2000
The Rockwell 2000 Series hardness testing machines achieve the highest level of depth measurement accuracy and resolution available and as a result has the best GR&R performance in the industry. This machine is offered in two sizes ranging from 10 – 14 in of vertical testing capacity to accommodate varying sample sizes and is available in three different variations of Rockwell Regular, Superficial, or Twin hardness scales.
Specifications:
| 2002R & 2003R Regular | 2002S & 2003S Superficial | 2002T & 2003T Twin | |
| Pre-load | 10kgf | 3kgf | 3, 10kgf |
| Main-load | 60, 100 150kgf | 15, 30, 45kgf | 15, 30, 45, 60, 100, 150kgf |
| Hardness scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, 15Y | 15N, 30N, 45N, 15T, 30T, 45T, 5W, 30W, 45W, 15X, 30X, 45X, 30Y, 45Y | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y |
| Test load type | Electronic closed-loop loadcell | ||
| Test cycle type | Automatic, one button start | ||
| Vertical test capacity | 2002 models 10in [254mm]; 2003 models 14in [356mm] | ||
| Horizontal test capacity | 8.5in [216mm] | ||
| Indenters (optional) | 120° Diamond cone, 1/16in, 1/8in, 1/4in, 1/2in Ball | ||
| Standards Compliant | ASTM E18, B254, ISO 6508, JIS Z2245 | ||
