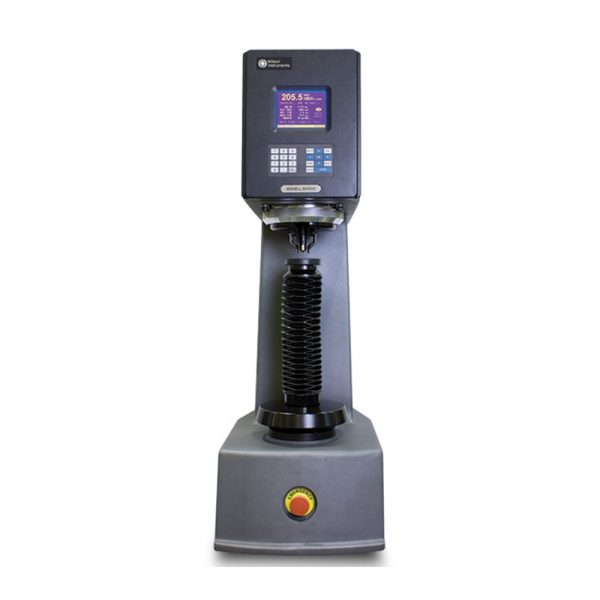

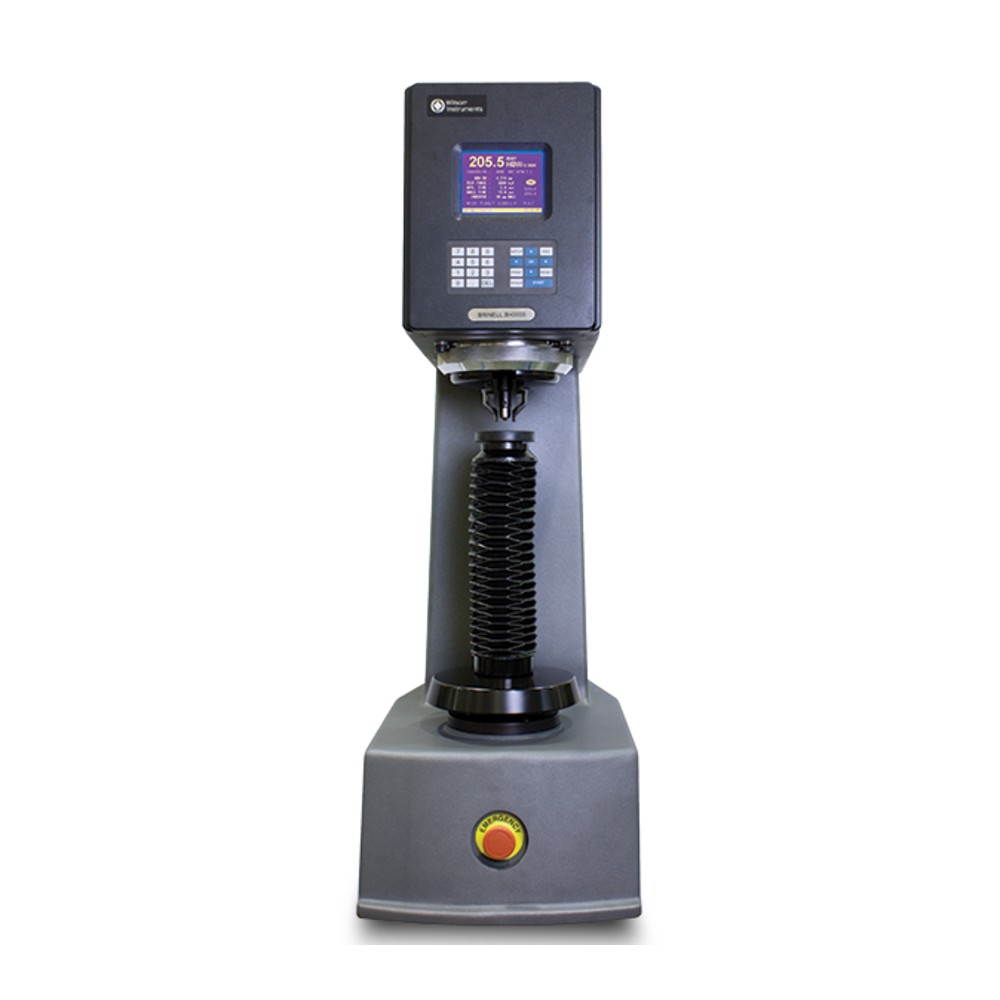

Brinell Hardness Tester



BH3000



The Wilson BH3000 is a durable, 30 kN (3000 kgf) Brinell hardness tester that is ideal for a wide range of Brinell loads from 62.5 kgf – 3000 kgf.

Designed with rugged construction to withstand harsh environments, the reliable BH3000 Brinell hardness testing machine combines high rigidity and closed-loop load cell technology to ensure accurate and safe load applications.



Category:

Description



BH3000



The Wilson BH3000 is a durable, 30 kN (3000 kgf) Brinell hardness tester that is ideal for a wide range of Brinell loads from 62.5 kgf – 3000 kgf. Designed with rugged construction to withstand harsh environments, the reliable BH3000 Brinell hardness testing machine combines high rigidity and closed-loop load cell technology to ensure accurate and safe load applications.

Key features of the BH3000 Brinell hardness tester include a clamping device for securing parts to the exchangeable anvil, an easy-to-use user interface to set up and operate the tester, a built-in keypad calculator that accurately presents HB hardness values, and an LCD screen.

This hardness tester has a wide Brinell scale load range of 612N – 29.42 KN (62.5 kgf – 3000 kgf.) The LCD screen displays statistics per test series, results, and language settings. The display also features an integrated hardness calculator, Brinell hardness diagonals, value, statistics, and conversions.



Hardness scales HB
Display Hardness HB value (after entering diagonal length into keypad calculator); Mean diagonal length; Test force; Dwell time; Ball diameter; Conversion; Limits
Hardness Resolution 0.1 unit if HB < 100; else 1.0 unit
Standards Compliant ISO 6506, ASTM E10, JIS
Test Load Type Load Cell Closed-Loop Control System
Test Cycle Automatic
Test Loads 62.5, 187.5, 250, 500, 750, 1000, 1500, 3000kgf
Brinell Scales HBW 10/3000, HBW 10/1500, HBW 10/1000, HBW 10/500, HBW 10/250, HBW 10/100, HBW 5/750, HBW5/250, HBW 2.5/187.5, HBW 2.5/62.5
Indenters (optional) Brinell Balls: 2.5, 5, 10mm
Load Duration 2 – 99 sec
Specimen Accommodation Vertical space 11in (280mm) Horizontal space (from center-line) 5in (130 mm) External surfaces roughly grinded, Ra < 21.6 μm
Cylindrical Surfaces Down to 0.1in (3mm) diameter
Power 100 – 240VAC, 60/50Hz
Optics (optional) External measuring microscope; mechanical 20x, 40x or 60x, digital King Scan IV PC based measurement system
