Description

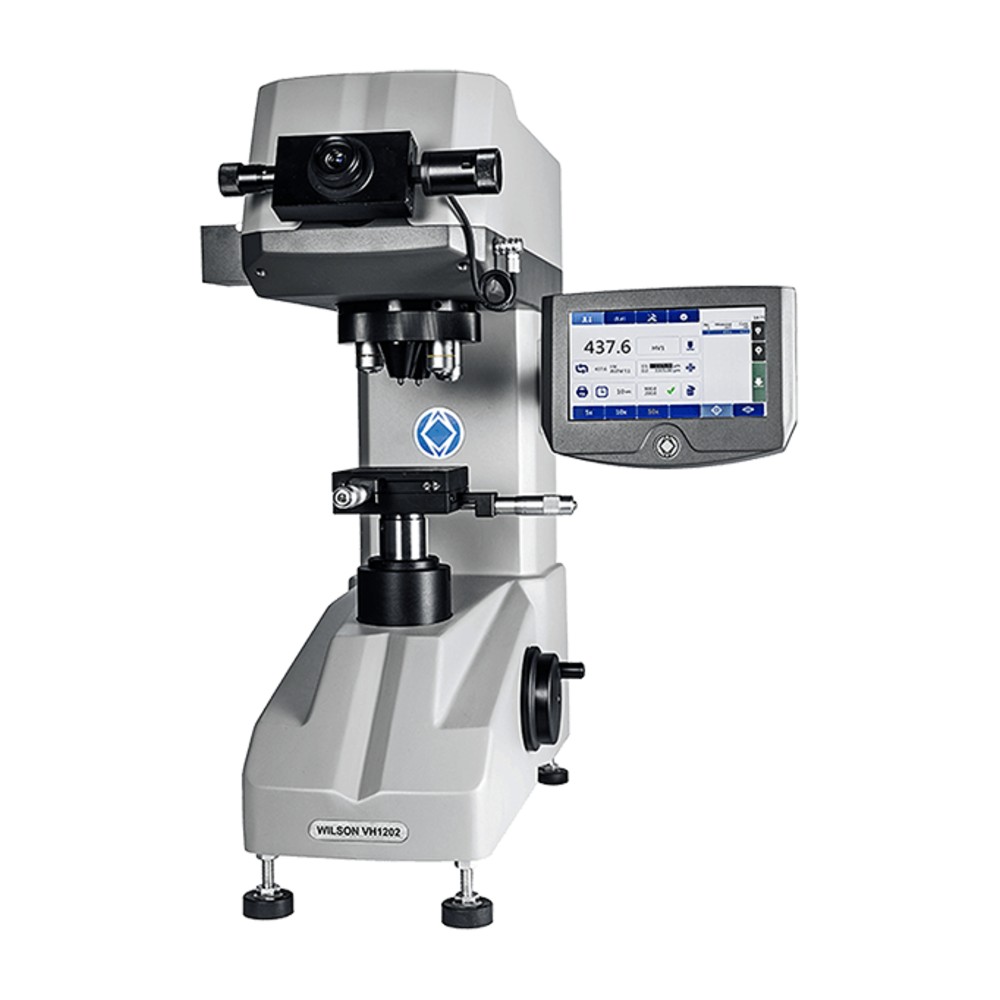

VH1102 and VH1202
The VH1102 and VH1202 micro hardness tester machines designed for both Knoop and Vickers offer a versatile, affordable, and reliable solution for accurate micro-hardness testing, both for quality control and for metallurgical research applications.
The VH1002-series allows it´s an operator to take measurements using the digital eyepiece in standalone mode or by using an optional integrated high-resolution camera and the powerful DiaMet™ software.
Buehler’s microhardness testers are equipped with a four-position turret which includes one indenter position as well as a 10x and 50x objective. The turret offers either four or six objective slots, allowing you to fit all the magnification power for your application. The standard 10x and 50x objective can be extended with a 100x objective, thus allowing for a total magnification of up to 1000x.
| VH1102 | VH1202 | |
| Load Range | 10-2000gf | 10-2000gf |
| Objectives | 3 positions | 4 positions |
| Indenters | 1 position, Knoop or Vickers | 2 positions, select Knoop or Vickers |
| LCD | 7′ color LCD with USB out | |
| Test Scales | HV0.01 – HV0.025 – HV0.05 – HV0.1 – HV0.2 – HV0.3 – HV0.5 – HV1 – HV2
HK0.01 – HK0.025 – HK0.05 – HK0.1 – HK0.2 – HK0.3 – HK0.5 – HK1 – HK2 |
|

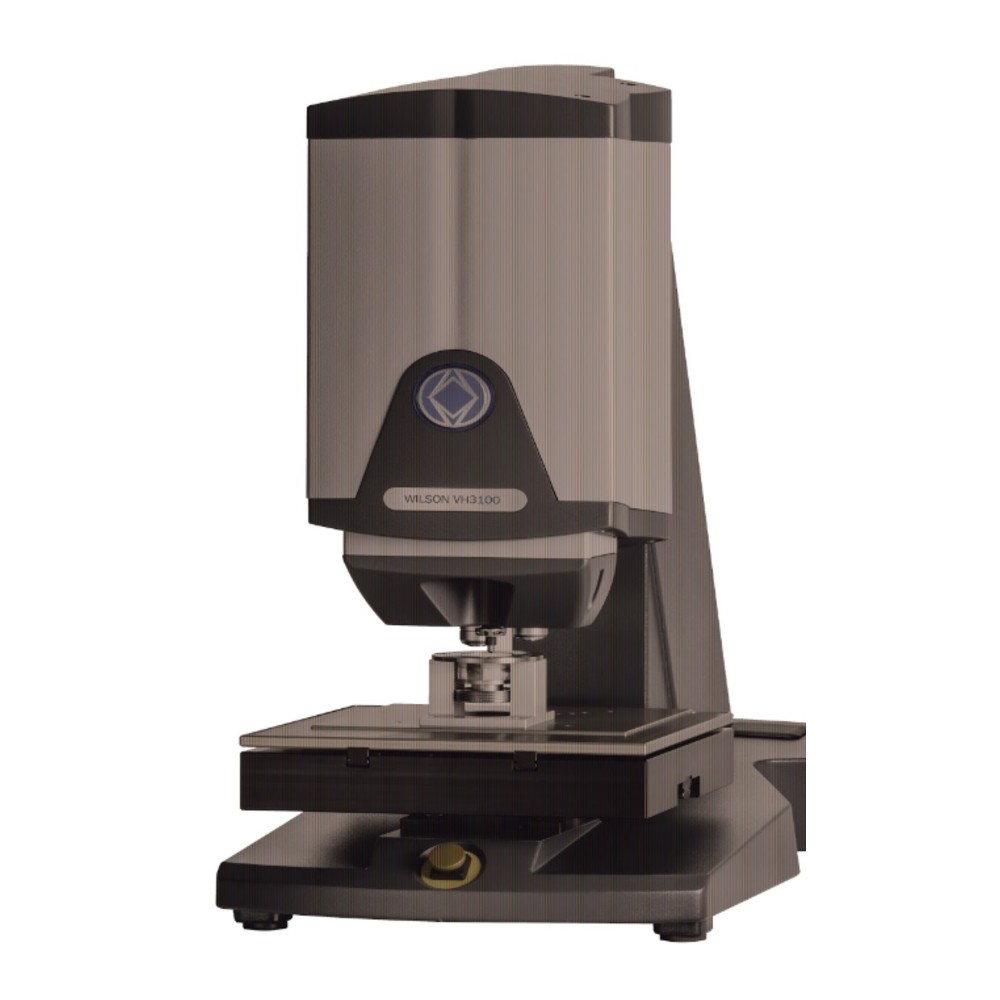

Wilson® VH3100 Vickers & Knoop Hardness Testers
The best pre-configured full automatic Vickers hardness tester on the market. The All-in-One Wilson VH3100 has all you need for your production control hardness testing requirements. This machine setup is configured to perform the easiest operation but with advanced software solutions – DiaMet Enterprise.
| Load Range | 0,05*-10kgf |
| Objectives | 3 positions – configurable objectives |
| Indenters | 1 position, Knoop or Vickers |
| Overview | Optional |
| Test scales | HV0.05 – HV0.1 – HV0.2 – HV0.3 – HV0.5 – HV1 – HV2 – HV3 – HV5 – HV10
HK0.2 – HK0.3 – HK0.5 – HK1 – HK2 |
