Digital Microscope

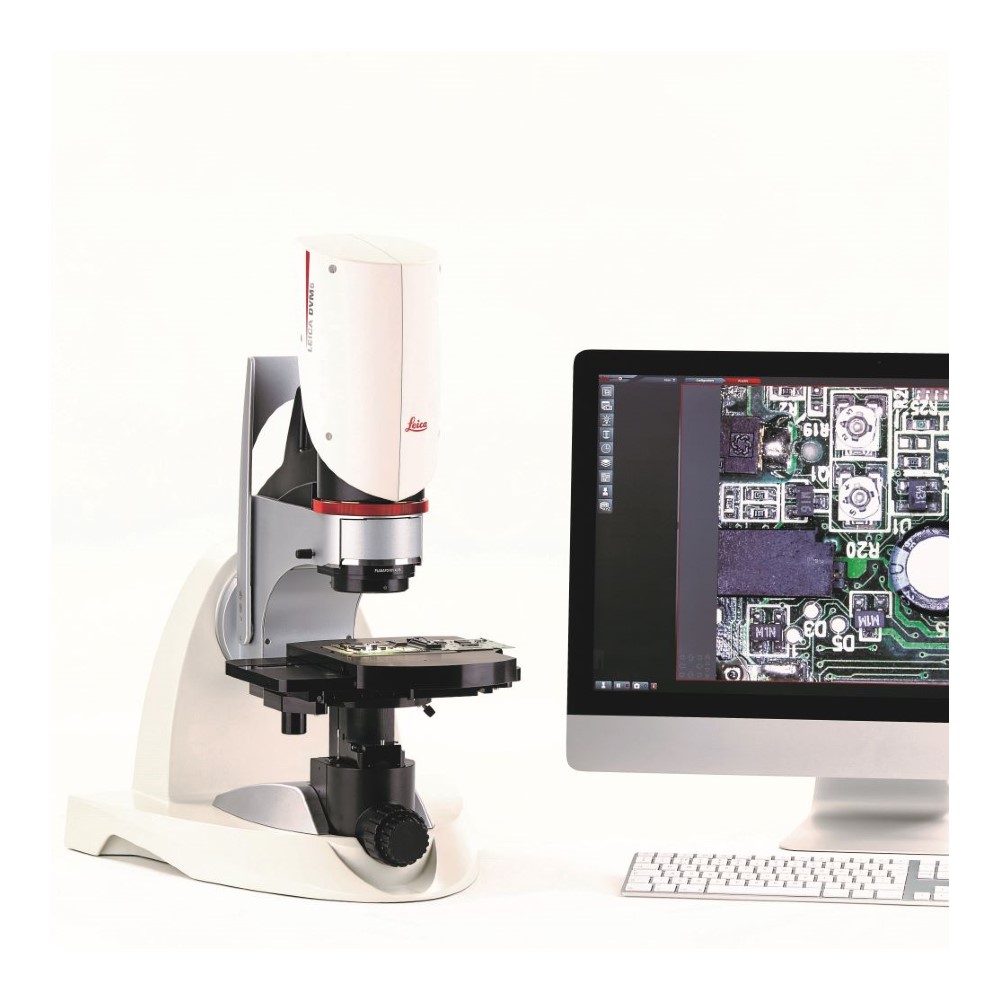

Leica DVM6 Digital Microscope

The DVM6 digital microscope solution is fast, reliable, and easy to use – no matter if you work in quality assurance, failure analysis, research, and development, or forensics. Ease of use, Brillant image quality, Impressive results.

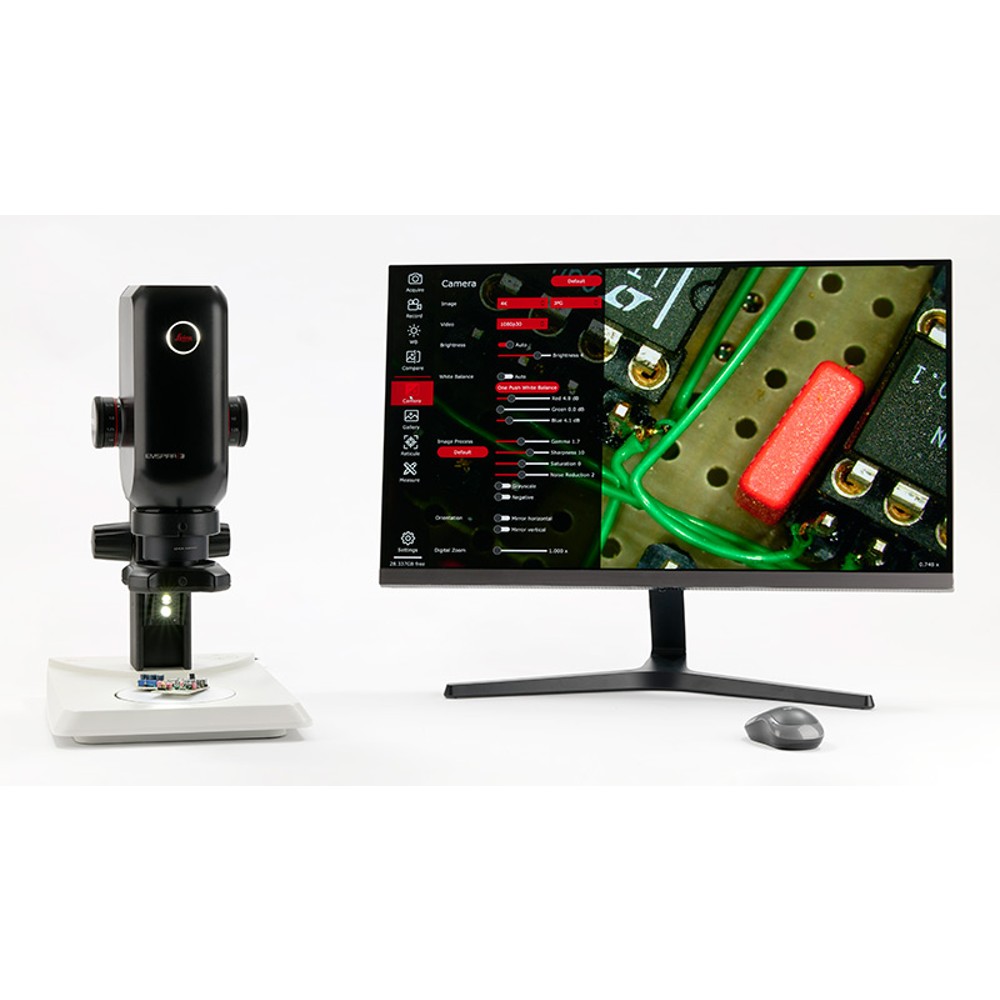

Leica Emspira 3 Digital Microscope

Emspira 3 digital microscope combines everything needed to perform comprehensive visual inspection into a single system, including comparison, measurement, and documentation sharing.



Category:

Description

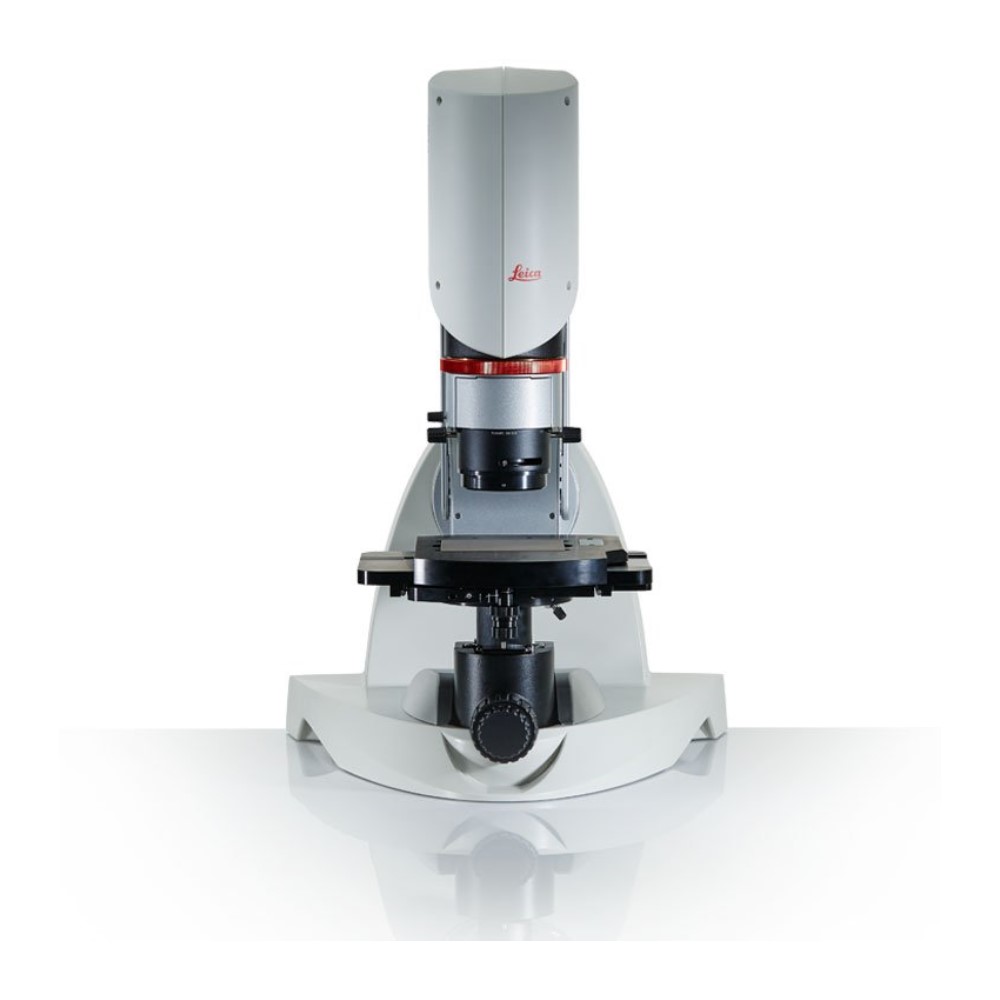

Leica DVM6 Digital Microscope



The DVM6 digital microscope solution is fast, reliable, and easy to use – no matter if you work in quality assurance, failure analysis, research, and development, or forensics. Ease of use, Brillant image quality, Impressive results.



Features:

  • Main unit: standard PC
  • Camera Sensor resolution: 3856Px x 2764Px
  • Camera Frame rate (@ 1600 x 1200): >30
  • Optics: 16:1 zoom, cont. encoded, PlanAPO
  • FOV horiz [mm]: 35.0 – 0.18 (3 objectives)
  • Ringlight and coax illumination: yes
  • tilting stand encoded: yes
  • tilt angle: -60° to +60°
  • one-hand tilting operation: yes
  • XY stage travel range: 70mm x 50mm
  • manual XY-stage encoded: yes
  • manual focus drive encoded: yes
  • Focus Resolution: 0.2μm

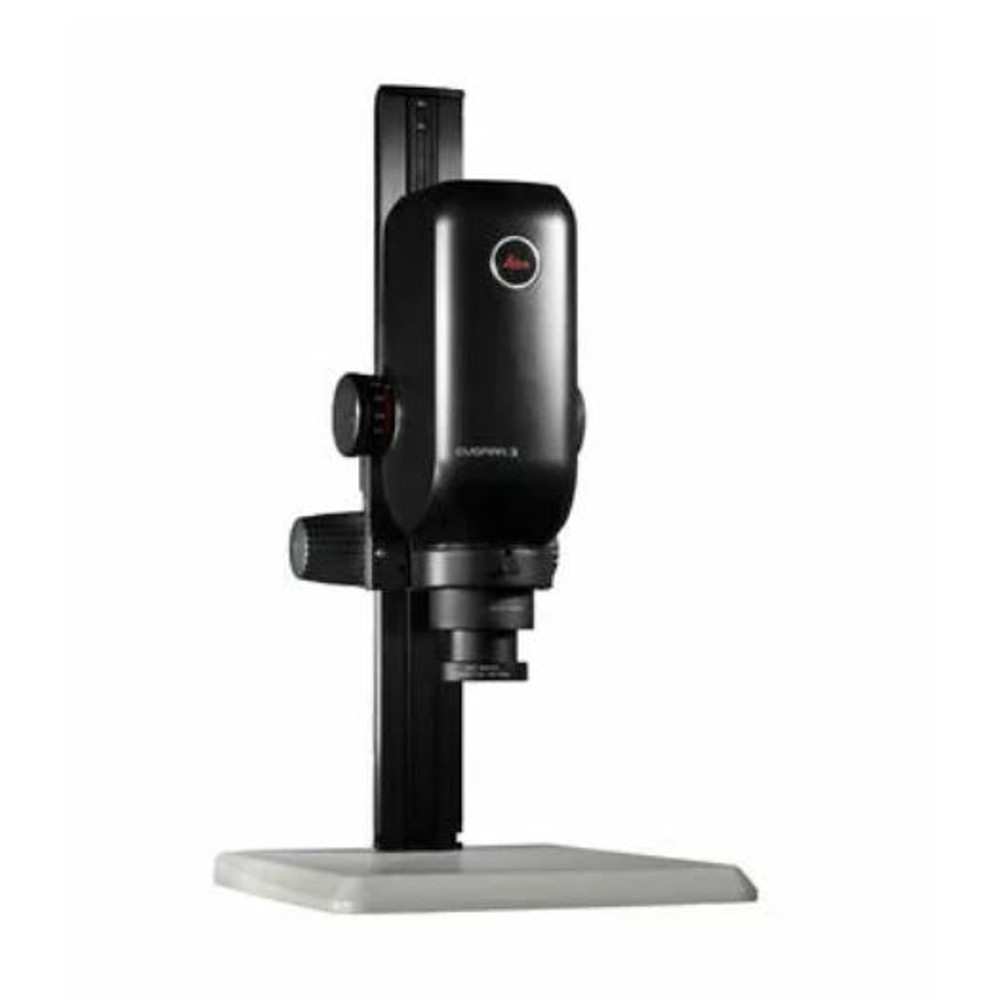

Leica Emspira 3 Digital Microscope



Emspira 3 digital microscope combines everything needed to perform comprehensive visual inspection into a single system, including comparison, measurement, and documentation sharing.

  • Streamline your inspection process
  • Cover your inspection needs flexibly
  • Work with confidence



Specifications:



Zoom Head

  • 2.9-1027x magnification range on 28” 4k Monitor, based on choice of objective
  • 8:1 zoom optics
  • Encoded zoom and magnification read out
  • IP21 Certified Housing protects internal optics and mechanics
  • AgTreat microbial surfaces reduces spread of germs



Camera:

  • 4K live image resolution
  • 60 frames per second output



Measurements and overlays

  • Maximum Measurement accuracy of ±0.5%
  • Measurement toolbox, annotations, and custom digital reticules included in standalone mode (no PC required)
  • 1 click image comparison via overlay or side by side comparison (no PC required)



Additional Information:

  • Store and share images via:
    • Wi-Fi
    • Ethernet RJ45
    • USB 3.0 storage device
  • Touch-screen compatible
  • Hand/foot switch compatible



Objective lenses

  • Maximum resolution of 1695 LP/mm for 28’’ 4k screen (PlanApo 5.0x)
  • Maximum depth of field 40.5 mm (Achr 0.32x)
  • Maximum working distance 303 mm (Achr 0.32x)



Illumination

  • LED segmentable ring light option with polarizer or diffuser options
  • Goose neck LED option for oblique lighting
  • Transmitted light options (BF, DF, Rotterman, Pol)
