Looking for a Fast Reliable & Easy To Use Digital Microscope?
If you work in quality control/assurance, failure analysis, research, and development, or in forensics, searching for the detail can take up a lot of your time in microscopy.
Leica DVM6 digital microscope is a fast, reliable, and easy to use solution that combines outstanding optics, intuitive operation, and smart software to save you time.
- Fully integrated ring light, plus coaxial and other types of illumination, for more options to study and analyze samples compared to a compound microscope;
- A simple, rapid way to change magnification over the entire range;
- Intuitive software for microscope operation and analysis;
- Automated tracking and storing (encoding) of important parameters.
Why you can reproduce results easily?
- The zoom range is continuously encoded and calibrated
- All instrument components are sensor-controlled
- All settings saved with every image, e.g. illumination, position, magnification
- Create a report for 2D and 3D measurements with one click
Accuracy matters – tested and guaranteed
The repeatability of the stage and focus column for DVM6 A/S is:
- XY-Axis: +/- 3um
- Z-Axis: +/- 0.5um
The linearity of the stage and focus column is:
- XY-Axis: 0.2%
- Z-Axis: 0.1%
Why the Leica DVM6 saves you time
- 16:1 zoom range makes changing between magnifications fast
- 2350x magnification shows you details down to 0.4 micrometers on the same microscope
- The horizontal field of view ranges from 35 mm to 0.18 mm at the same focus level
You will become an expert in virtually no time!

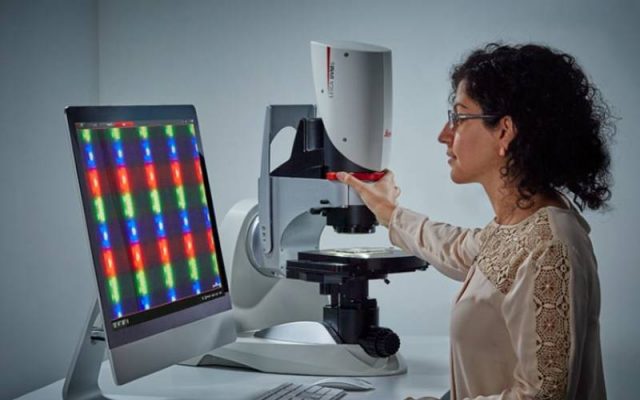

- Work seamlessly thanks to a one-handed objective change
- Stay focused and operate the tilting function with one hand
- Hybrid manual-motorized operation of X, Y, and Z – smart automation helps you to be faster
- Easy to operate, so little training time is needed
Image quality: See more with crisper images
Obtain excellent image quality! The Leica DVM6 has top-notch optics that the Leica brand is famous for. Choose from different integrated LED illumination options and reveal more details. Capture your image in natural colors with a high-resolution camera.
Why you can discover more with the Leica DVM6
- 10-megapixel high-resolution camera
- Fast live image display with more than 30 frames per second
- More details with excellent PlanApo-corrected Leica optics
- Illuminate your sample uniformly even in a large field of view
- Combine illumination and contrasting options in various ways to highlight your sample features best
Feature list Leica DVM6
- Manual or motorized versions
- All system components encoded – also for the manual version
- Motorized versions are hybrid and can be operated manually as well for fast coarse positioning
- Zoom module with 16:1 zoom range
- Integrated 10-megapixel high-resolution camera
- PlanApo-corrected Leica optics with a long working distance
- Motorized and software-controlled Iris diaphragm
- Integrated ring light and coaxial LED illumination
- Snap-on adapters for ring light contrasting (polarizer, diffusor, low angle illumination)
- Backlight illumination for translucent samples
- Tilting stand for one-handed operation, tilting from -60° to +60°
- Focus drive with a travel range of 60 mm
- XY stage with a travel range of 70 mm x 50 mm
- Autofocus with two options: one-shot on the region of interest, or continuous autofocus
- LAS X software
