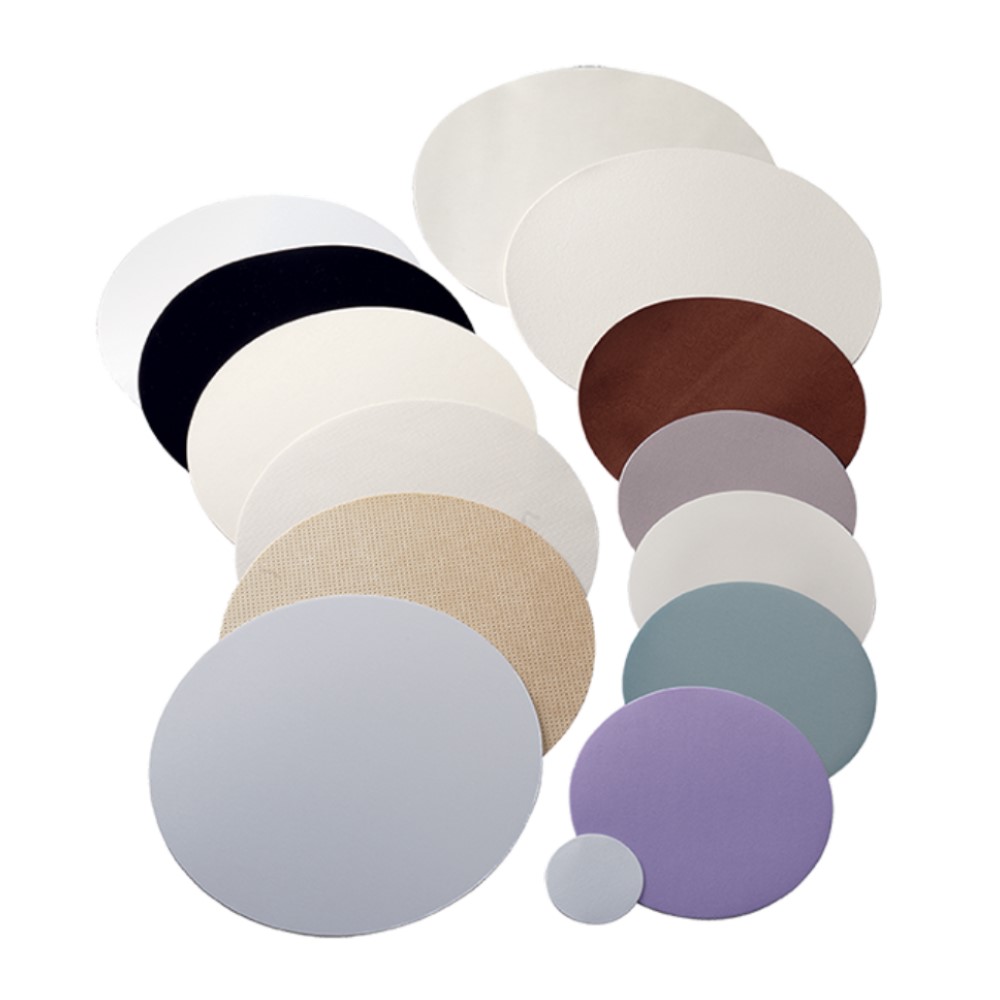

Sample Preparation Polishing Cloths



Polishing cloths for metallographic sample testing are used along with an abrasive to remove layers of surface deformation and expose the material structure for analysis.

Buehler’s metallographic polishing cloth pads are thoroughly tested and developed with MetaDi Diamond to provide a complete solution that delivers reliable results for each sample processed.



Category:

Description



Sample Preparation Polishing Cloths



Polishing cloths for metallographic sample testing are used along with an abrasive to remove layers of surface deformation and expose the material structure for analysis.

Buehler’s metallographic polishing cloth pads are thoroughly tested and developed with MetaDi Diamond to provide a complete solution that delivers reliable results for each sample processed.

The type of polishing cloth used depends heavily on the material being processed and the requirements for the final analysis. With a variety of fabrics, weaves, and naps, Buehler has a cloth to fit every application.



  • 8in, 10in, 12in diameters
  • Available with PSA or Magnetic backing

Cloth Photo Recommended Micron Size Abrasive Type Applications

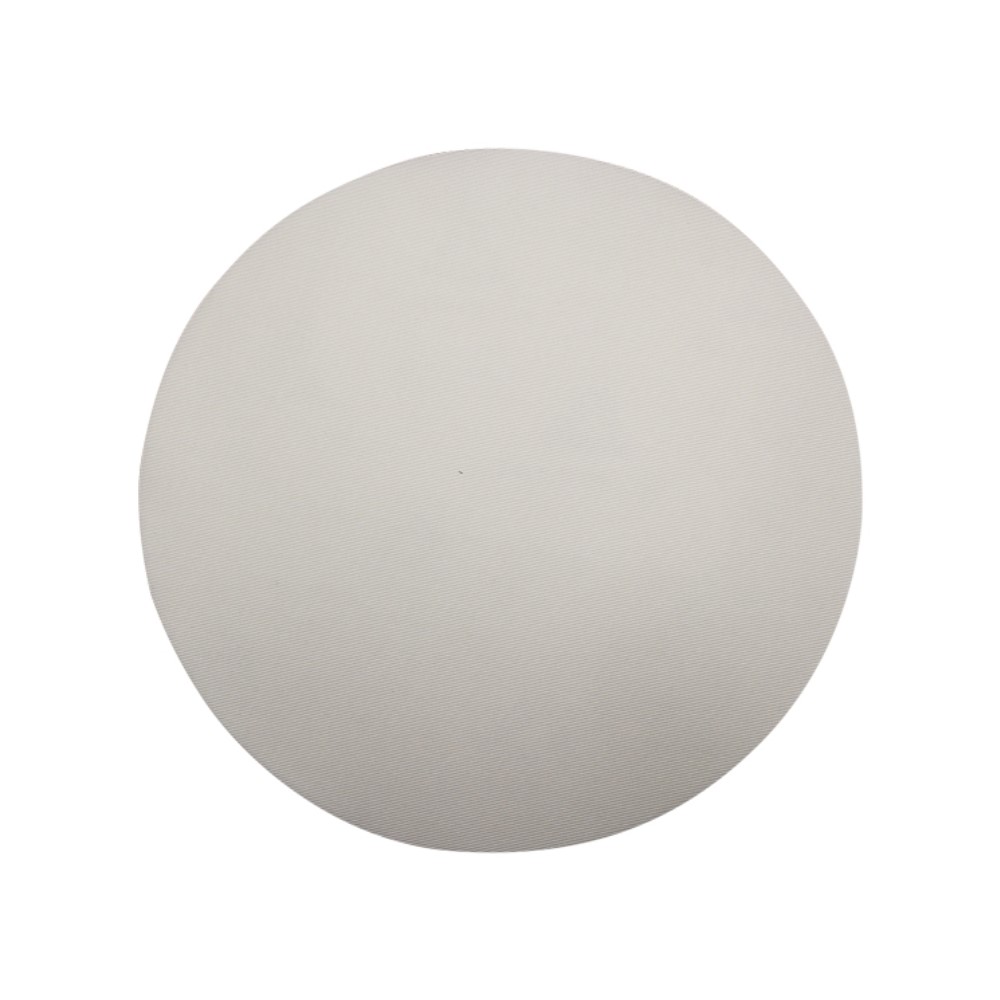

COARSE UltraPad™ UltraPad 6µm & Up Diamond Ferrous materials and thermal spray coatings
COARSE UltraPol™ Ultrapol 6µm & Up Diamond Minerals, coals, ceramics, inclusion retention in steels, and refractory metals

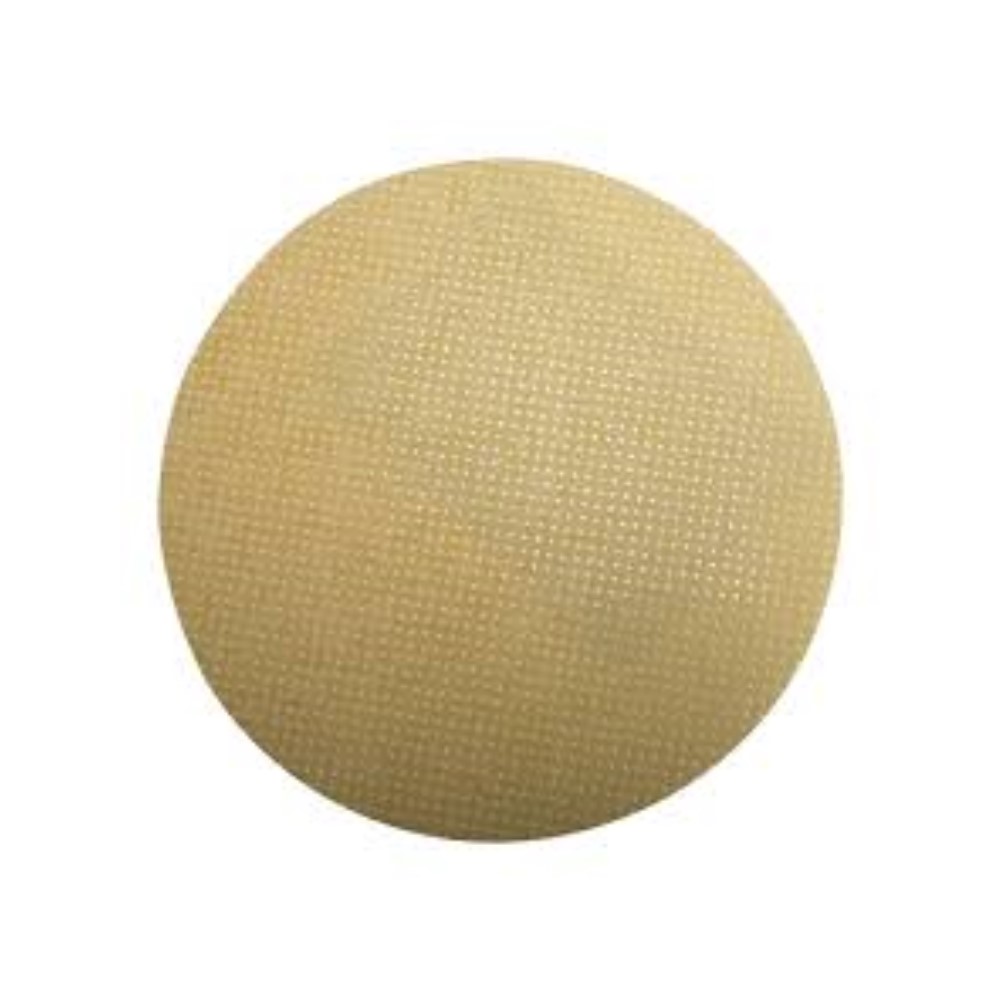

COARSE TexMet™ P Texmet P 6µm & Up Diamond Electronics, ceramics, carbides, petrographic, hard metals, glass, and metal matrix composites

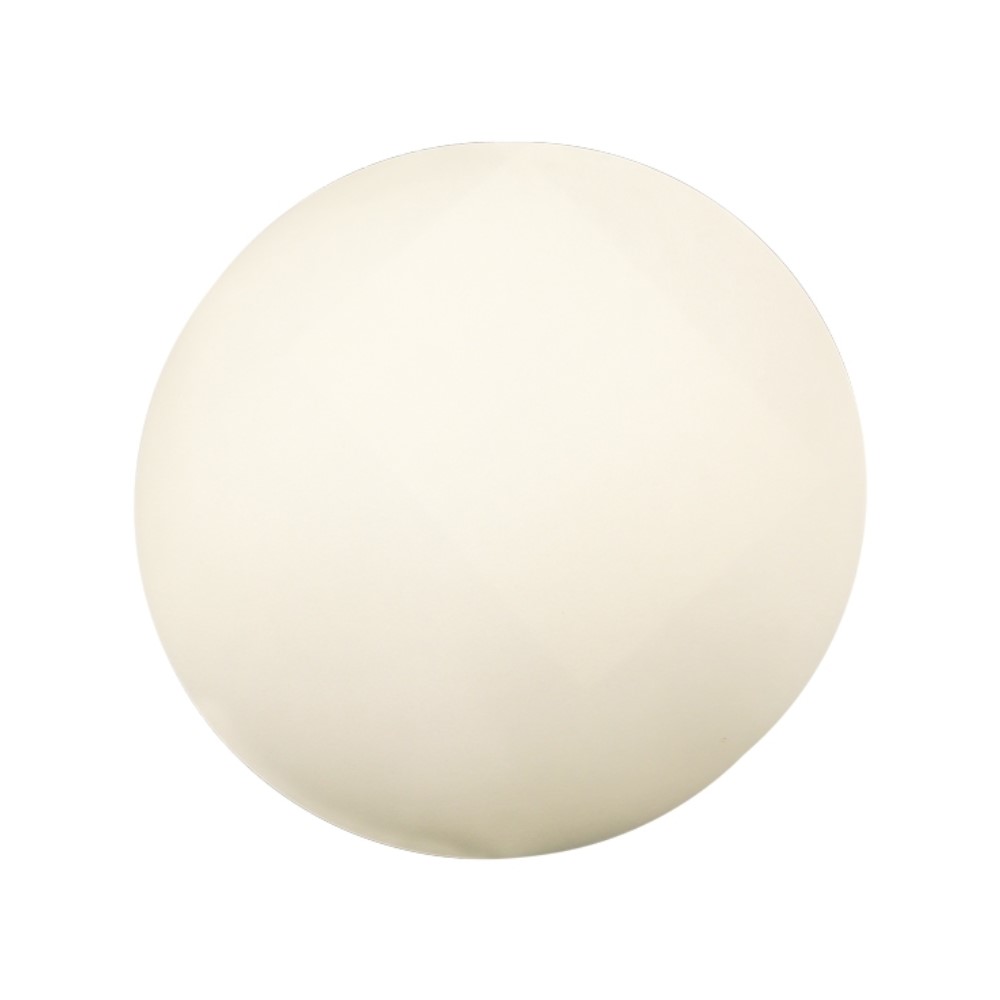

INTERMEDIATE Nylon Nylon 6µm & Up Diamond Ferrous materials, sintered carbides, and cast irons

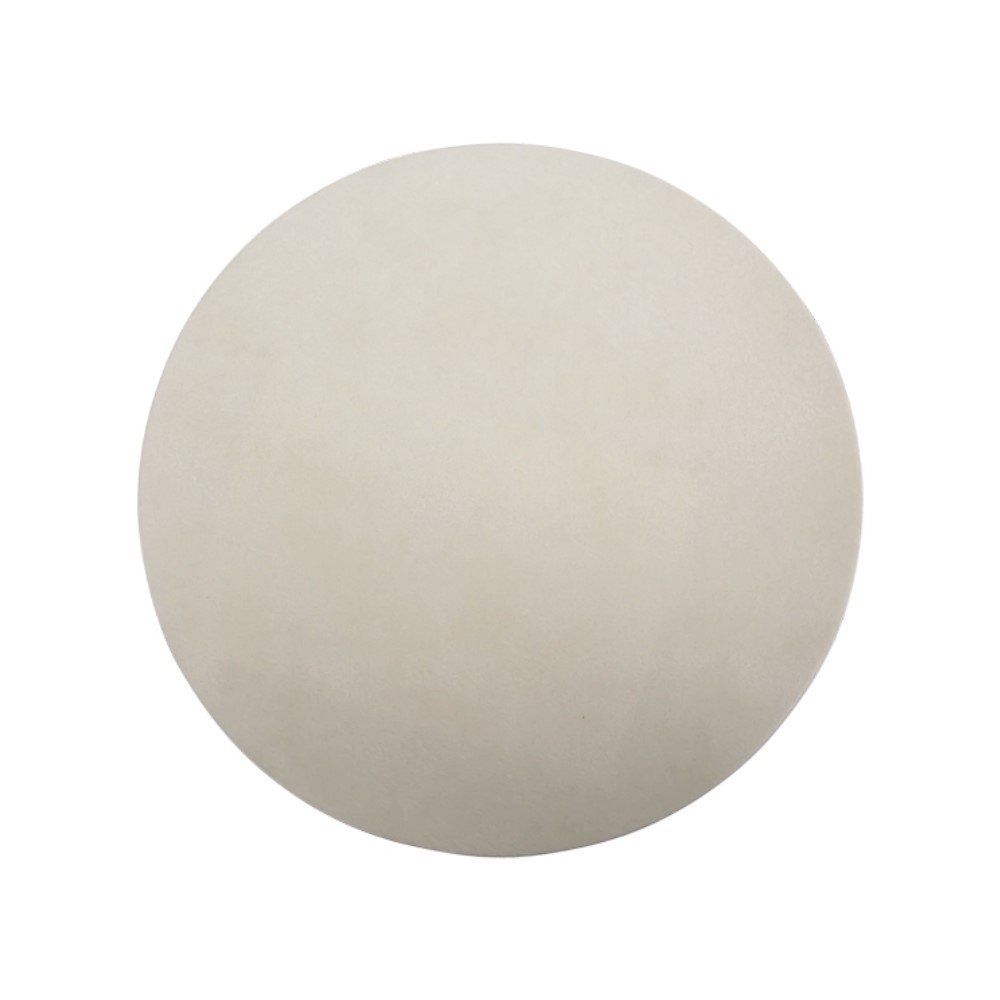

INTERMEDIATE TexMet C Texmet C 15µm to 0.02µm Diamond, Al2O3, SiO2 Ferrous and nonferrous metals, ceramics, electronics, PCB’s, thermal spray coatings, cast irons, cermets, minerals, composites, plastics

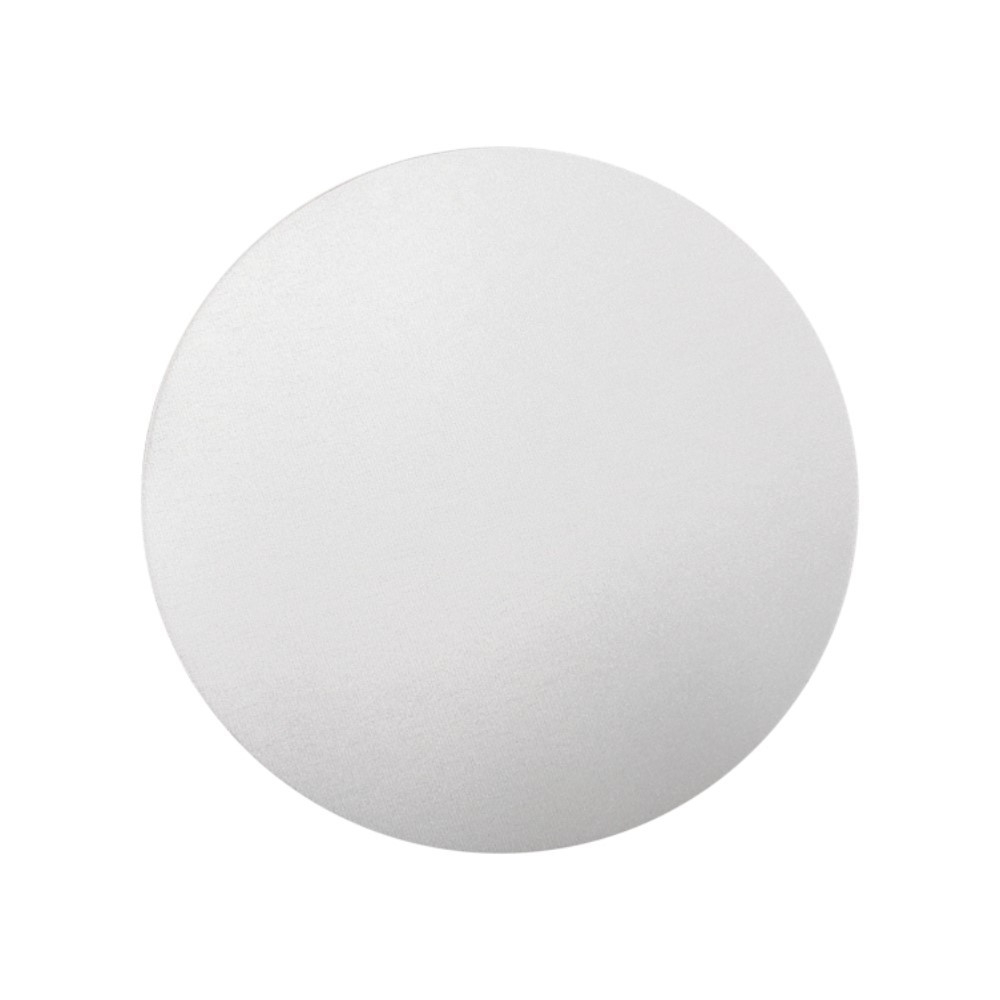

INTERMEDIATE TriDent™ Trident 15µm to 0.02µm Diamond, Al2O3 Ferrous and nonferrous metals, microelectronics, polymer matrix composites, coatings

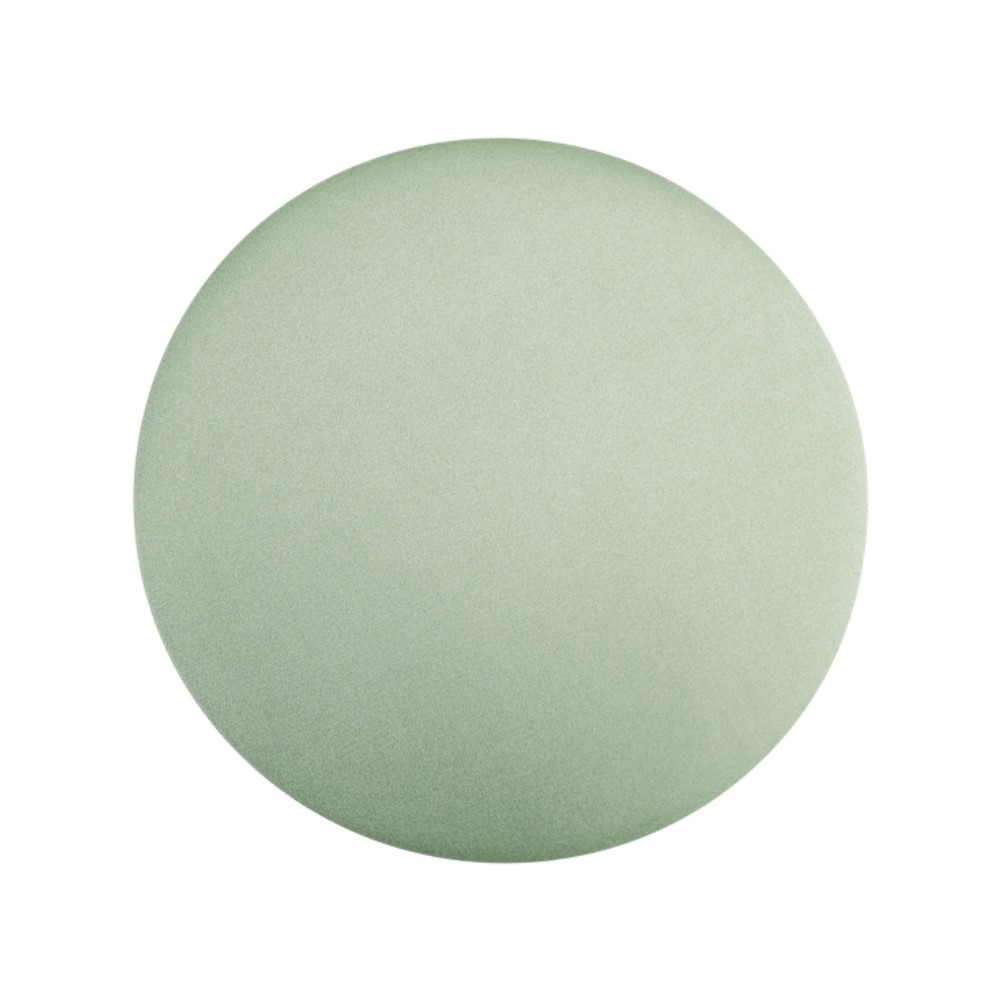

INTERMEDIATE VerduTex Verdutex 9µm to 1µm Diamond Ferrous and nonferrous metals, microelectronics, coatings

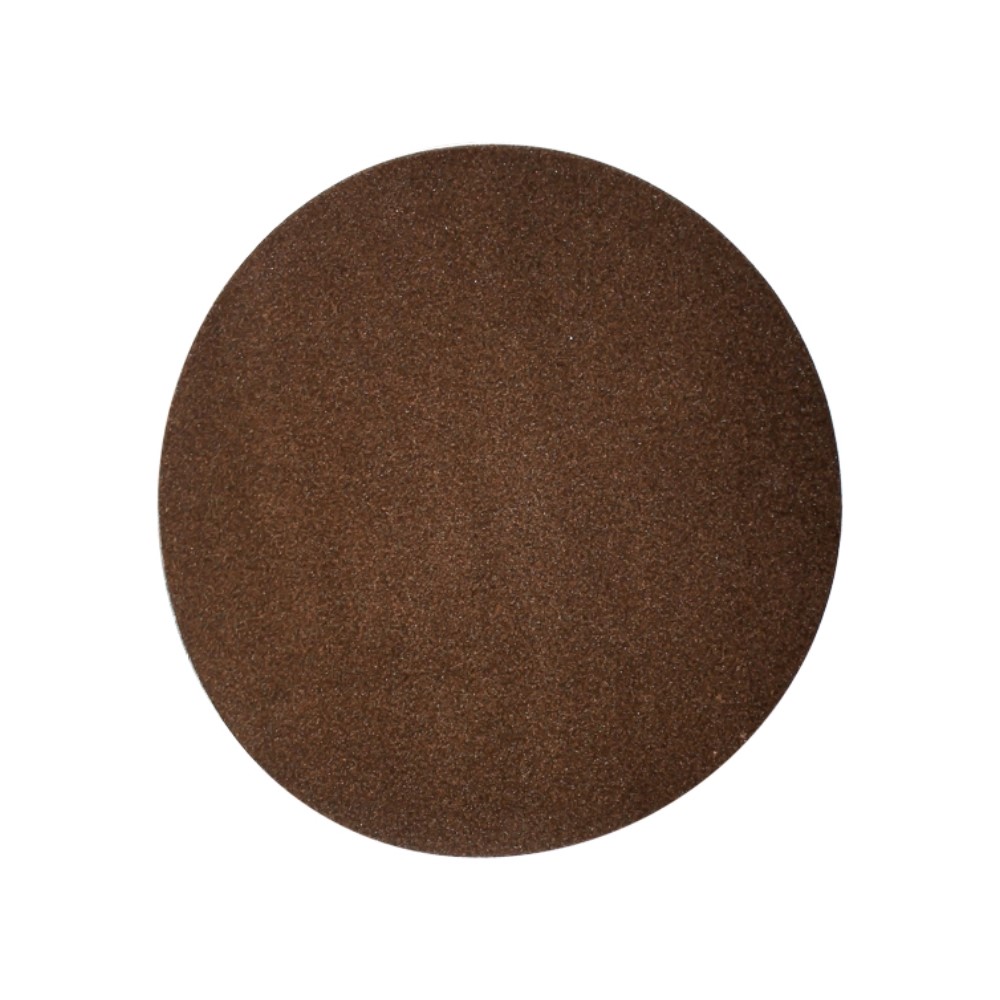

INTERMEDIATE VelTex Veltex 9µm to 1µm Diamond Soft metals

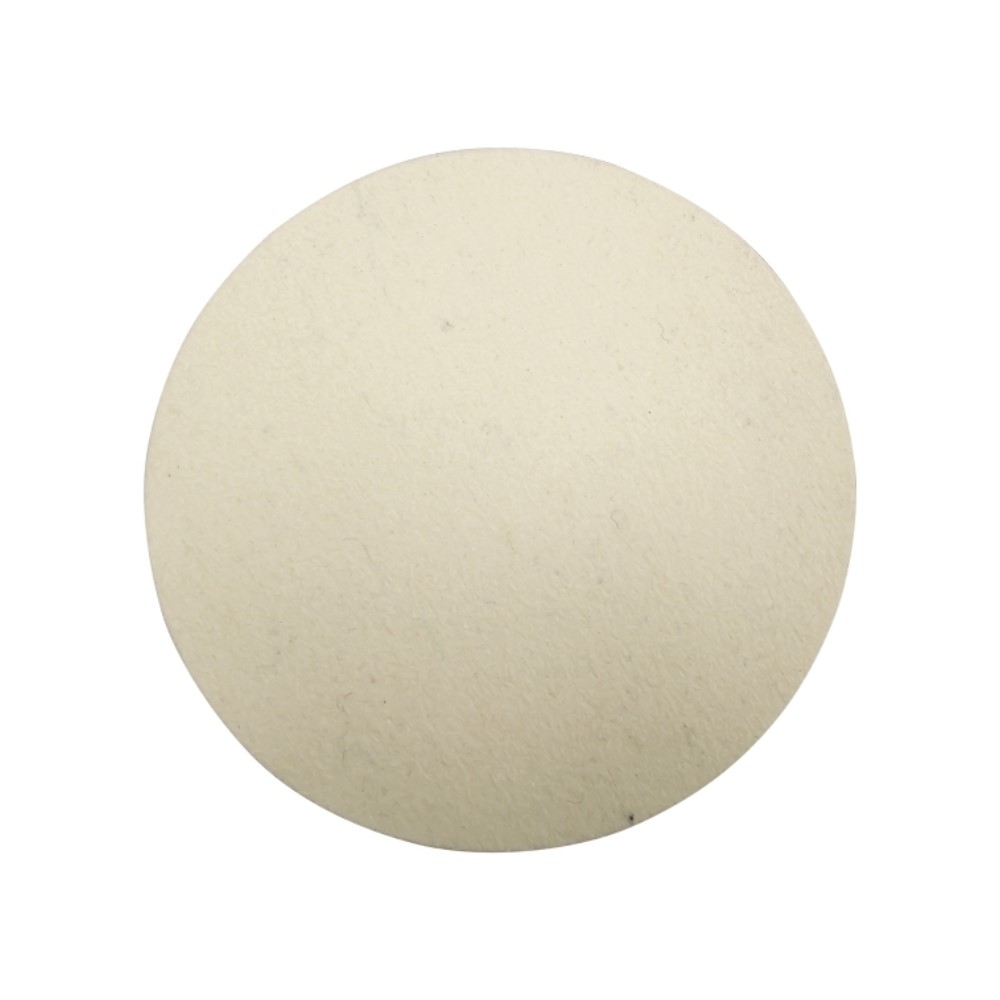

INTERMEDIATE WhiteFelt™ Whitefelt 6µm to 0.02µm Diamond, Al2O3, SiO2 Ferrous and nonferrous metals

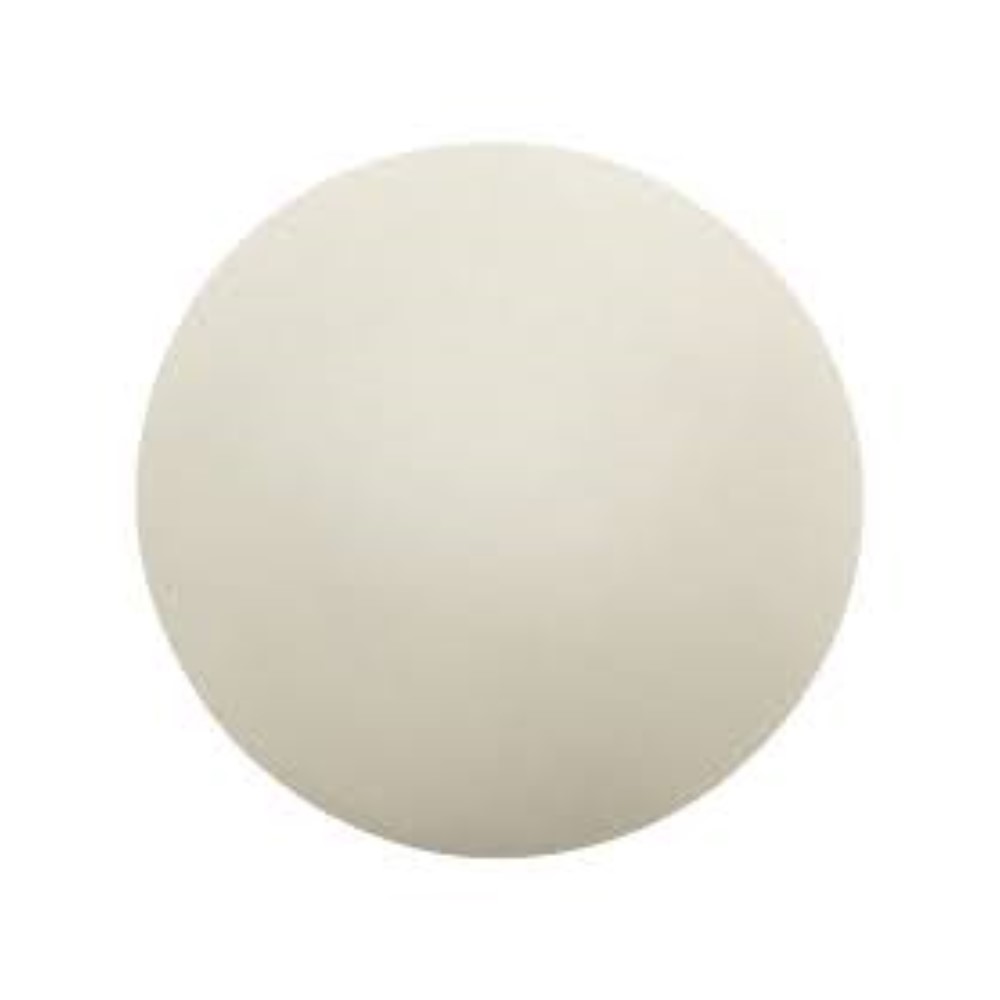

INTERMEDIATE PoliCloth Policloth 6µm to 1µm Diamond Cast iron, copper and aluminum alloys

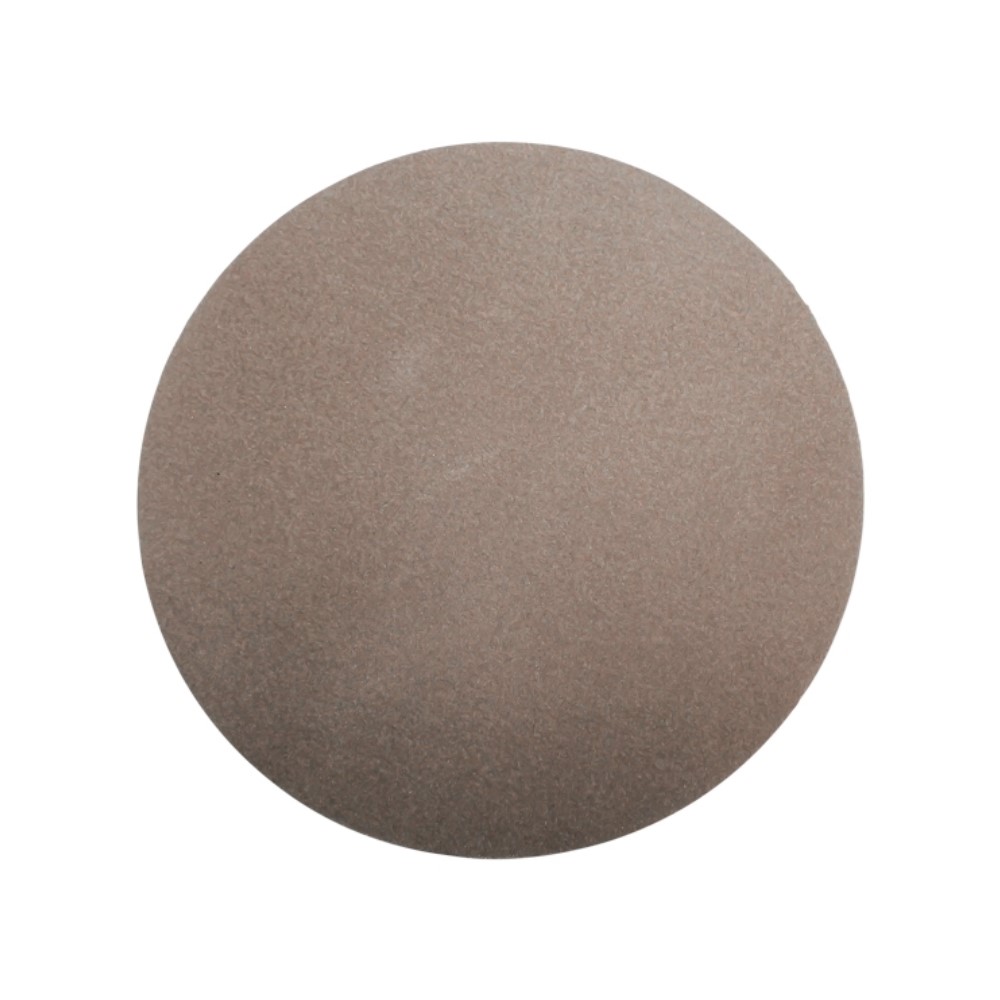

FINE MicroCloth™ Microcloth 5µm to 0.02µm Diamond, Al2O3, SiO2 Ferrous and nonferrous metals, ceramics, composites, PCBs, cast irons, cermets, plastics, electronics
FINE MicroFloc Microfloc 3µm to 0.02µm Diamond, Al2O3, SiO2 Ferrous and nonferrous materials

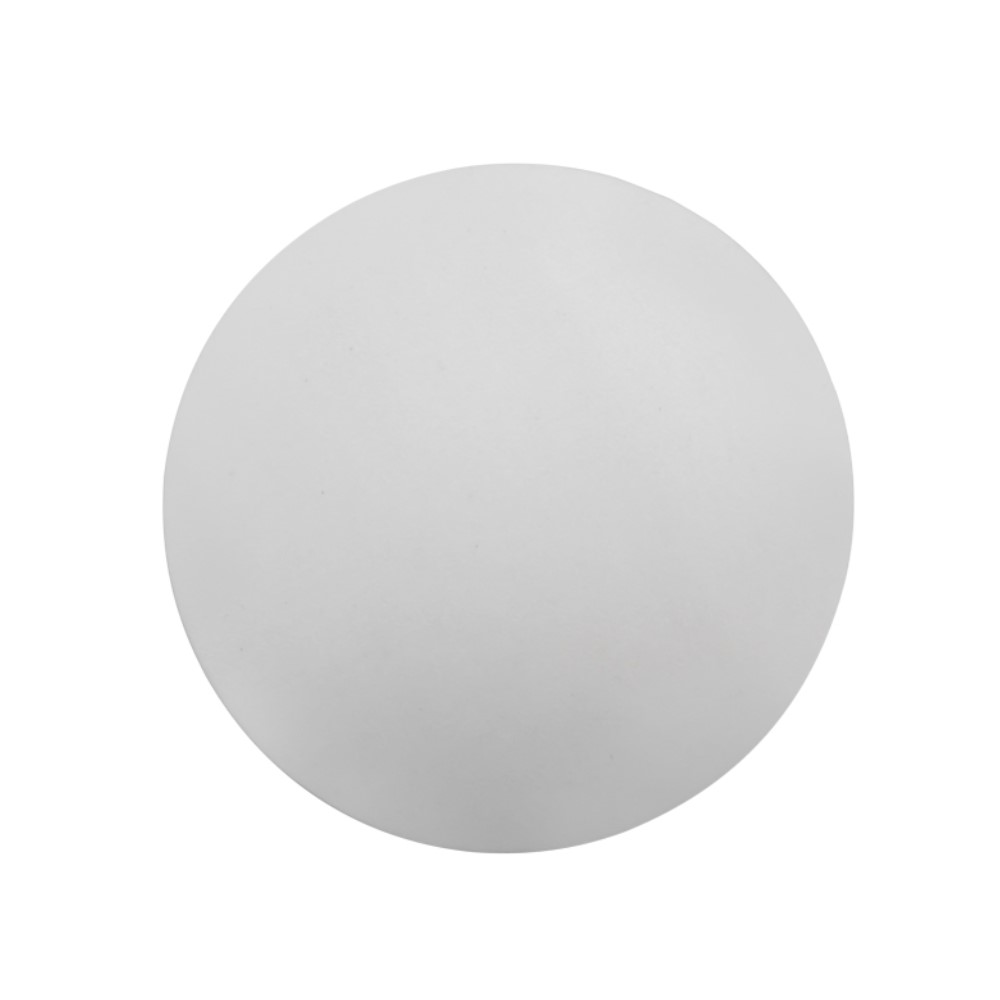

FINE MasterTex™ Mastertex 1µm to 0.05µm Al2O3, SiO2 Soft nonferrous and microelectronic

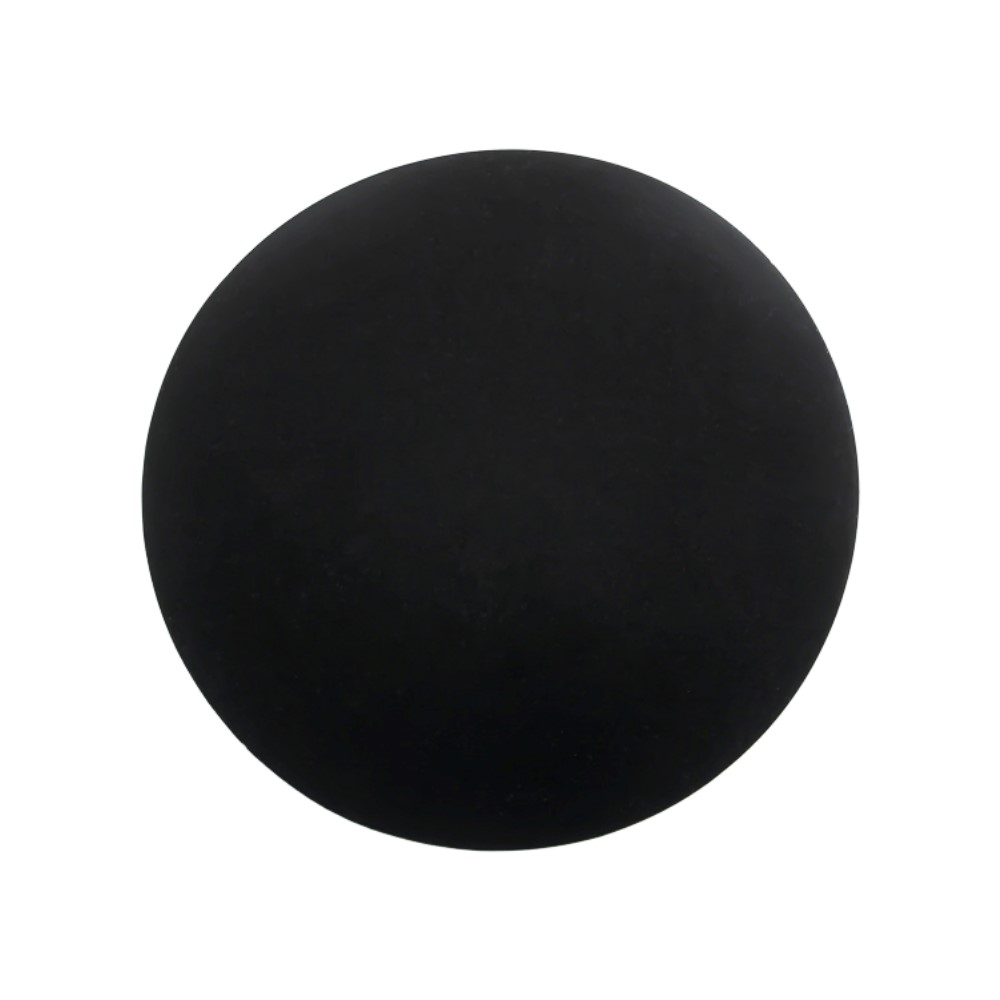

FINE ChemoMet™ Chemomet 1µm to 0.02µm Al2O3, SiO2 Titanium, stainless steel, lead/tin, solders, electronic packages, soft nonferrous metals, plastics
