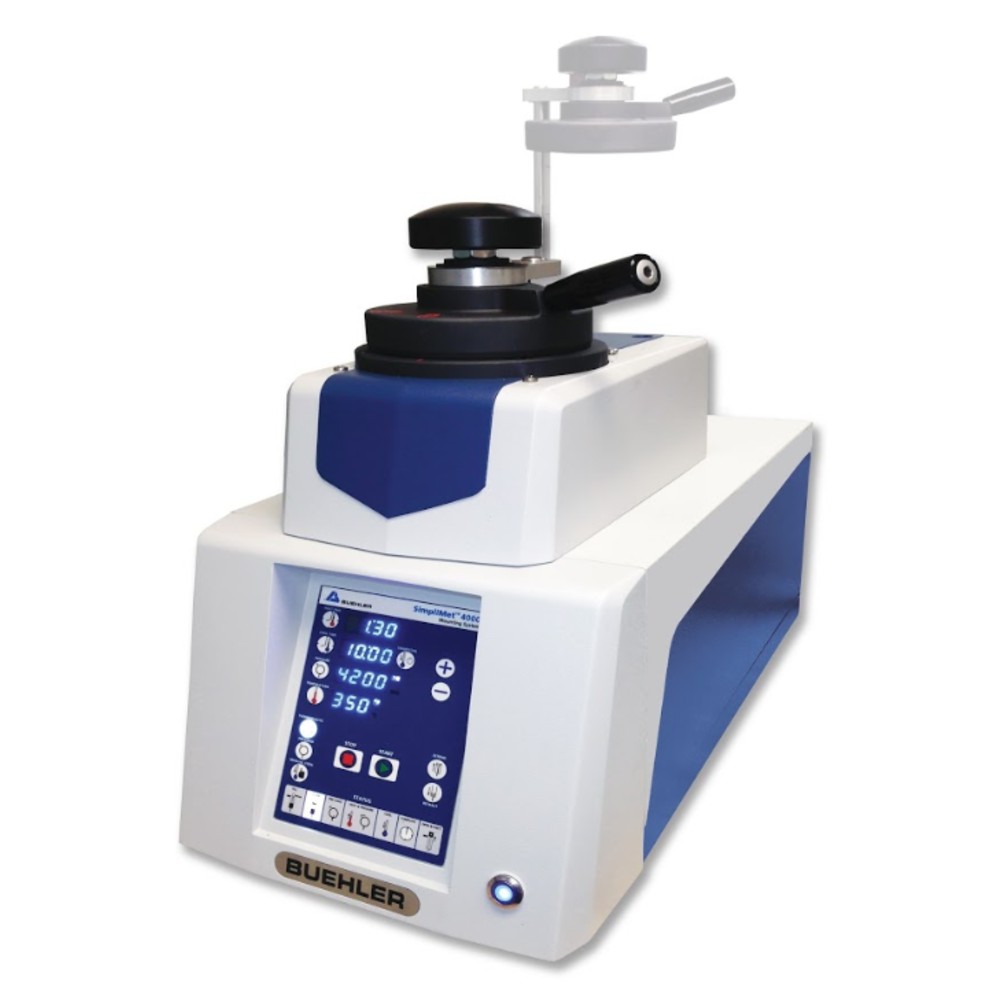

Hot Mounting Press Machine



Simplimet 4000



The Fastest Mounting Press Designed for 24/7 Use. Eliminate bottlenecks at the mounting stage, rapidly transforming your cut samples to specimens ready for grinding and polishing.

The SimpliMet 4000 mounting press, was tested in extreme conditions, and simulated the duty cycle of the busiest labs in the world, providing high reliability in continuous use environments.



Description



Simplimet 4000



The Fastest Mounting Press Designed for 24/7 Use. Eliminate bottlenecks at the mounting stage, rapidly transforming your cut samples to specimens ready for grinding and polishing.

The SimpliMet 4000 mounting press, was tested in extreme conditions, and simulated the duty cycle of the busiest labs in the world, providing high reliability in continuous use environments.

The automatic SimpliMet 4000 mounting press packs fast mounting cycles into limited bench space, optimizing productivity. By replacing older, slower, larger mounting presses; capacity can be doubled for the same amount of space.

Use your mounting press out of the box without the wait. New employees can be trained quickly and efficiently.



Specifications:



Operation: Automatic Electrohydrolics

Mounting Mold Sizes: English: 1″, 1.25″, 1.5″

Metric: 25mm, 30mm, 40mm, 50mm



Mounting Parameters



Pressure: 1000 – 4400psi(70 – 300bars) operational pressure range +/- 10%

Adjustable in 50psi (5bar) increments

Preload pressure function applies gradual presssure for delicate specimens 350psi (24bar)

Heat Time: User Selectable time from 1-20 minutes

Heating Temperature: 120° F – 420° F (50° C – 220° C) operation temperature range

Heating Power: 1500 Watt@115VAC / 1900 Watt@230VAC

Cooling Time: User Selectable or Smart Cool

User Selectable time from 1-30 minutes

Adjustable in 10-second increments

Smart Cool Intelligent cooling system automatically cools until the sample temperature reaches 40°C

Thermoplasmic Function: Automatically sets correct parameters fro thermoplastic resins such as TransOptic TM and cools the mount in a controlled, linear fashion appropriate for the mounting media

Noise Level Max: 62 dB maximum at 1 meter from the front of the machine, while raising and lowering the ram with the mold closure open

Working Environment: Tempurature: 40° F to 104° F / 5° C to 40° C

Humidity: 30 – 90% humidity, non-condensing



Electrical



Voltage/Frequency: 85-264VAC, 50/60Hz 1 phase
